Reservedele til Kuglehane S6

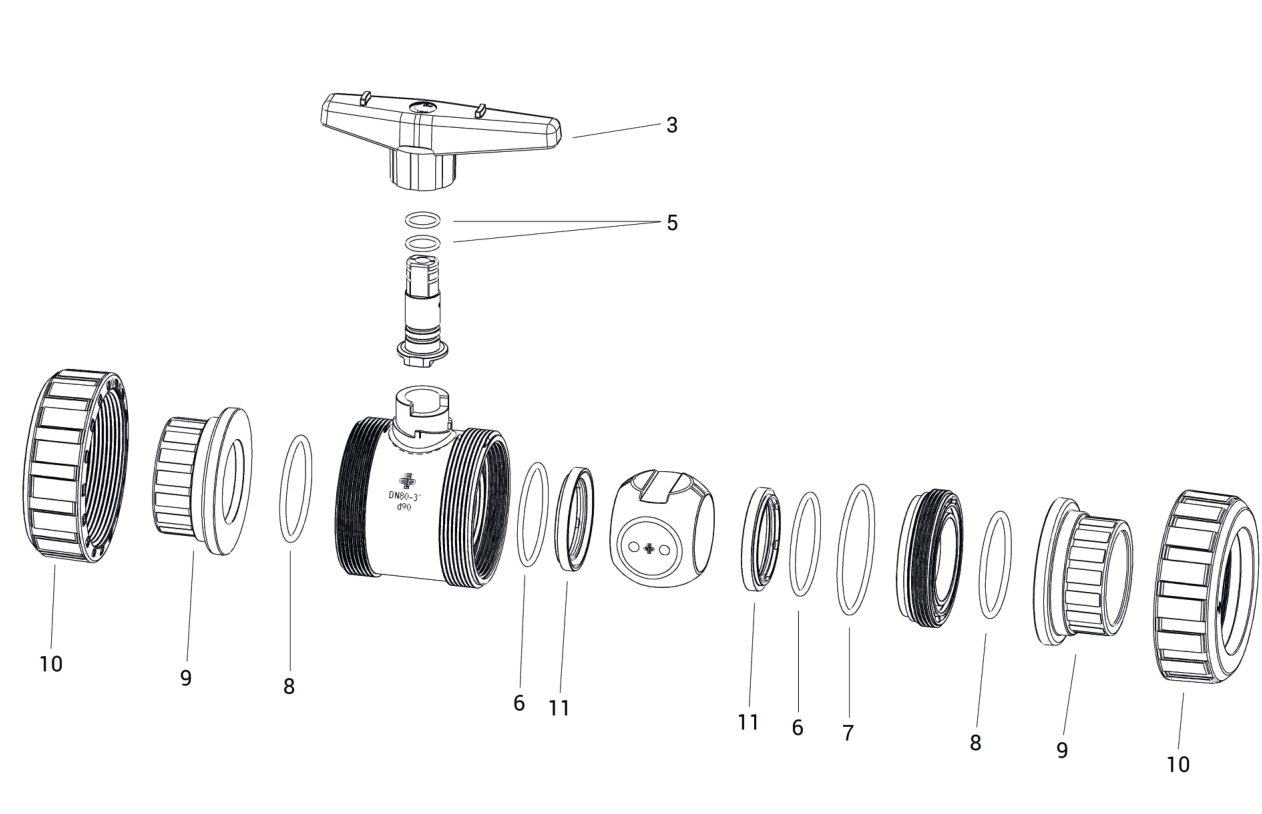

Kuglehane S6

positioner

Greb
O-ring
O-ring (kun ved DN80)
O-ring
O-ring
Tilslutningsvarianter (limmuffe / -studs, gevindmuffe, svejsemuffe / -studs)
Omløbermøtrik
Kuglesædering

Greb 2W til kuglehane S6

Art.-nr. (Praher)	KLN-nr.	DN	d [mm]	Farve	Pk.
100002B	51510000	10/15	16/20	orange	1
100019B	51510003	20	25	orange	1
100022A	51510004	25	32	orange	1
100040C	51510005	32	40	orange	1
100052B	51510006	40	50	orange	1
100077A	51510007	65	75	orange	1
101170B	51510125	50	63	orange	1
102067A	51510185	80	90	orange	1

Greb 2W til kuglehane S6

Art.-nr. (Praher)	KLN-nr.	DN	d [mm]	Farve	Pk.
100076A	–	65	75	rot	1
100583B	–	40	50	rot	1
100593B	–	10/15	16/20	rot	1
100594B	–	20	25	rot	1
100595C	–	32	40	rot	1
100805A	–	25	32	rot	1
101169B	–	50	63	rot	1
102068A	–	80	90	rot	1

Greb 2W til kuglehane S6

Art.-nr. (Praher)	KLN-nr.	DN	d [mm]	Farve	Pk.
100912A	–	10/15	16/20	blau	1
100913A	–	20	25	blau	1
100914	–	25	32	blau	1
100915A	–	32	40	blau	1
100916A	–	40	50	blau	1
100917A	–	50	63	blau	1
100918	–	65	75	blau	1
102069	–	80	90	blau	1

Grebsforlænger

Art.-nr. (Praher)	KLN-nr.	DN	d [mm]	Pk.
125424	51510970	10/15	16/20	15
125425	51510971	20/25	25/32	15
125426	51510972	32	40	15
125427	51510973	40/50	50/63	15
125428	51510974	65	75	15
125429	51510975	80	90	15

Pakningssæt 2W til kuglehane S6 (sædepakning: PTFE)

Art.-nr. (Praher)	KLN-nr.	DN	d [mm]	Pk.	Materiale
141890	51512137	40	50	10	EPDM
141891	51512138	40	50	10	FPM
141894	51512141	50	63	10	EPDM
141895	51512142	50	63	10	FPM
142046	51512169	10/15	16/20	10	EPDM
142047	51512170	10/15	16/20	10	FPM
142054	51512173	20	25	10	EPDM
142055	51512174	20	25	10	FPM
142058	51512177	25	32	10	EPDM
142059	51512178	25	32	10	FPM
142062	51512180	32	40	10	EPDM
142063	51512181	32	40	10	FPM
142256	51512224	65	75	10	EPDM
142258	51512226	65	75	10	FPM
142364	51512264	80	90	10	EPDM
142365	51512265	80	90	10	FPM

Pakningssæt 2W til kuglehane S6 (sædepakning: PE)

Art.-nr. (Praher)	KLN-nr.	DN	d [mm]	Pk.	Materiale
141888	51512136	40	50	10	EPDM
141889	–	40	50	10	FPM
141892	51512139	50	63	10	EPDM
141893	51512140	50	63	10	FPM
142048	51512171	10/15	16/20	10	EPDM
142049	51512172	10/15	16/20	10	FPM
142056	51512175	20	25	10	EPDM
142057	51512176	20	25	10	FPM
142060	51512179	25	32	10	EPDM
142061	–	25	32	10	FPM
142064	51512182	32	40	10	EPDM
142065	–	32	40	10	FPM
142257	51512225	65	75	10	EPDM
142259	51512227	65	75	10	FPM
142366	51512266	80	90	10	EPDM
142367	51512267	80	90	10	FPM

Limmuffe metrisk

Art.-nr. (Praher)	KLN-nr.	d	DN	Materiale	Pk.
100555	51510085	16	10	PVC	1
100553	51510083	20	15	PVC	1
100551	51510082	25	20	PVC	1
100557	51510087	32	25	PVC	1
100450	51510057	40	32	PVC	1
100451	51510058	50	40	PVC	1
100500	51510074	63	50	PVC	1
140186	51511943	75	65	PVC	1
142485	00002879	90	80	PVC	1
142110	51512194	110	80	PVC	1

Limmuffe ASTM

Art.-nr. (Praher)	KLN-nr.	d	DN	Materiale	Pk.
100556	51510086	3/8"	10	PVC	1
100554	51510084	1/2"	15	PVC	1
101021	51510119	3/4"	20	PVC	1
100974	51510117	1"	25	PVC	1
101022	51510120	1 1/4"	32	PVC	1
100560	51510088	1 1/2"	40	PVC	1
100561	51510089	2"	50	PVC	1
140565	51512001	2 1/2"	65	PVC	1
142554	–	3"	80	PVC	1
142337	–	4"	80	PVC	1

Limstuds metrisk

Art.-nr. (Praher)	KLN-nr.	d	DN	Materiale	Pk.
100724	51510102	16	10	PVC	1
102237	–	20	15	PVC	1
102238	–	25	20	PVC	1
102239	–	32	25	PVC	1
102240	–	40	32	PVC	1
102241	–	50	40	PVC	1
102242	–	63	50	PVC	1
140776	51512010	75	65	PVC	1
102099	–	90	80	PVC	1
142712	–	110	80	PVC	1

Gevindmuffe BSP

Art.-nr. (Praher)	KLN-nr.	d	DN	Materiale	Pk.
140414	51511967	3/8"	10	PVC	1
140417	51511968	1/2"	15	PVC	1
140420	51511969	3/4"	20	PVC	1
140423	51511970	1"	25	PVC	1
140426	51511971	1 1/4"	32	PVC	1
140240	51511949	1 1/2"	40	PVC	1
140405	51511966	2"	50	PVC	1
140177	51511941	2 1/2"	65	PVC	1
142224	–	3"	80	PVC	1
142695	51512289	4"	80	PVC	1

Gevindmuffe NPT

Art.-nr. (Praher)	KLN-nr.	d	DN	Materiale	Pk.
140449	–	3/8"	10	PVC	1
140188	–	1/2"	15	PVC	1
140448	–	3/4"	20	PVC	1
140189	–	1"	25	PVC	1
140277	–	1 1/4"	32	PVC	1
140190	–	1 1/2"	40	PVC	1
140191	–	2"	50	PVC	1
140450	–	2 1/2"	65	PVC	1
143123	–	3"	80	PVC	1
143124	–	4"	80	PVC	1

Omløbermøtrik

Art.-nr. (Praher)	KLN-nr.	d	DN	Materiale	Pk.
101941	51510175	16/20	10/15	PVC	1
101942	51510176	25	20	PVC	1
101943	51510177	32	25	PVC	1
101944	51510178	40	32	PVC	1
101519	51510146	50	40	PVC	1
101520	51510147	63	50	PVC	1
101995	51510182	75	65	PVC	1
102066	51510184	90	80	PVC	1
142112	51512195	110	80	PVC	1

Svejsemuffe metrisk

Art.-nr. (Praher)	KLN-nr.	d	DN	Materiale	Pk.
141539	51512075	16	10	PE100	1
141540	–	20	15	PE100	1
141541	51512076	25	20	PE100	1
141542	51512077	32	25	PE100	1
141543	51512078	40	32	PE100	1
141544	51512079	50	40	PE100	1
141545	51512080	63	50	PE100	1
141546	–	75	65	PE100	1
142321	–	90	80	PE100	1
142339	–	110	80	PE100	1

Svejsestuds S4

Art.-nr. (Praher)	KLN-nr.	d	DN	Materiale	Pk.
100867	51510110	16	10	PE100	1
100868	51510111	20	15	PE100	1
140495A	51511992	25	20	PE100	1
140496A	51511993	32	25	PE100	1
140071A	51511929	40	32	PE100	1
140445	51511988	50	40	PE100	1
140112	51511937	63	50	PE100	1

Svejsestuds metrisk

Art.-nr. (Praher)	KLN-nr.	d	DN	Materiale	Pk.
140197	51511945	75	65	PE100	1
142225	51512217	90	80	PE100	1
142890	–	110	80	PE100	1

Svejsestuds PE100 metrisk

Art.-nr. (Praher)	KLN-nr.	d	DN	Materiale	Pk.
102526	–	20	15	PE100	1
102527	51510194	25	20	PE100	1
102528	51510195	32	25	PE100	1
102529	51510196	40	32	PE100	1
102530	51510197	50	40	PE100	1
102531	51510198	63	50	PE100	1
142670	–	75	65	PE100	1
142689	–	90	80	PE100	1
142692	–	110	80	PE100	1

Fast flange DIN-ANSI-JIS (limmuffe)

Art.-nr. (Praher)	KLN-nr.	d	Materiale	DN	Pk.
142069	51512185	d20	PVC	PN16 - class 150 - 10K	1
142070	51512186	d25	PVC	PN16 - class 150 - 10K	1
142071	51512187	d32	PVC	PN16 - class 150 - 10K	1
142072	51512188	d40	PVC	PN16 - class 150 - 10K	1
142073	51512189	d50	PVC	PN16 - class 150 - 10K	1
142074	51512190	d63	PVC	PN16 - class 150 - 10K	1
142075	51512191	d75	PVC	PN16 - class 150 - 10K	1
142076	51512192	d90	PVC	PN16 - class 150 - 10K	1
142077	51512193	d110	PVC	PN16 - class 150 - 10K	1
