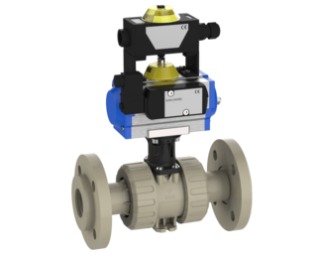

2-way ball valve M1 pneumatic with position feedback and solenoid valve, ANSI backing flange (long) (PP-H)
Description
Modular 2-way industrial ball valve M1 in PP-H with pneumatic actuator with position feedback pi-250V and 5/2-3/2way solenoid valve (24VDC), silicone free. Connection as ANSI backing flange (long). Seat-sealing PTFE, sealing EPDM or FPM. Actuator function PO-NC, PO-NO or double-acting PO-DA (actuator type size-dependent). 1/2"–2" / DN15–DN50, PN10. Catalogue code 38M.
2-way ball valve M1 pneumatic with position feedback and solenoid valve – ANSI backing flange (long) (PO-NC / PO-NO / PO-DA)
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack | Operating principle | Type |
|---|---|---|---|---|---|---|---|---|
| 513230 | EPDM | 1/2" | 15 | 10 | 1 | PO-NC | MT05-2 | |
| 513231 | EPDM | 3/4" | 20 | 10 | 1 | PO-NC | MT05-2 | |
| 513232 | EPDM | 1" | 25 | 10 | 1 | PO-NC | MT05-2 | |
| 513233 | EPDM | 1 1/4" | 32 | 10 | 1 | PO-NC | MT15-4 | |
| 513234 | EPDM | 1 1/2" | 40 | 10 | 1 | PO-NC | MT15-4 | |
| 513235 | EPDM | 2" | 50 | 10 | 1 | PO-NC | MT17-4 | |
| 513236 | FPM | 1/2" | 15 | 10 | 1 | PO-NC | MT05-2 | |
| 513237 | FPM | 3/4" | 20 | 10 | 1 | PO-NC | MT05-2 | |
| 513238 | FPM | 1" | 25 | 10 | 1 | PO-NC | MT05-2 | |
| 513239 | FPM | 1 1/4" | 32 | 10 | 1 | PO-NC | MT15-4 | |
| 513240 | FPM | 1 1/2" | 40 | 10 | 1 | PO-NC | MT15-4 | |
| 513241 | FPM | 2" | 50 | 10 | 1 | PO-NC | MT17-4 | |
| 513242 | EPDM | 1/2" | 15 | 10 | 1 | PO-NO | MT05-2 | |
| 513243 | EPDM | 3/4" | 20 | 10 | 1 | PO-NO | MT05-2 | |
| 513244 | EPDM | 1" | 25 | 10 | 1 | PO-NO | MT05-2 | |
| 513245 | EPDM | 1 1/4" | 32 | 10 | 1 | PO-NO | MT15-4 | |
| 513246 | EPDM | 1 1/2" | 40 | 10 | 1 | PO-NO | MT15-4 | |
| 513247 | EPDM | 2" | 50 | 10 | 1 | PO-NO | MT17-4 | |
| 513248 | FPM | 1/2" | 15 | 10 | 1 | PO-NO | MT05-2 | |
| 513249 | FPM | 3/4" | 20 | 10 | 1 | PO-NO | MT05-2 | |
| 513250 | FPM | 1" | 25 | 10 | 1 | PO-NO | MT05-2 | |
| 513251 | FPM | 1 1/4" | 32 | 10 | 1 | PO-NO | MT15-4 | |
| 513252 | FPM | 1 1/2" | 40 | 10 | 1 | PO-NO | MT15-4 | |
| 513253 | FPM | 2" | 50 | 10 | 1 | PO-NO | MT17-4 | |
| 513254 | EPDM | 1/2" | 15 | 10 | 1 | PO-DA | MT05DA | |
| 513255 | EPDM | 3/4" | 20 | 10 | 1 | PO-DA | MT05DA | |
| 513256 | EPDM | 1" | 25 | 10 | 1 | PO-DA | MT05DA | |
| 513257 | EPDM | 1 1/4" | 32 | 10 | 1 | PO-DA | MT15DA | |
| 513258 | EPDM | 1 1/2" | 40 | 10 | 1 | PO-DA | MT15DA | |
| 513259 | EPDM | 2" | 50 | 10 | 1 | PO-DA | MT15DA | |
| 513260 | FPM | 1/2" | 15 | 10 | 1 | PO-DA | MT05DA | |
| 513261 | FPM | 3/4" | 20 | 10 | 1 | PO-DA | MT05DA | |
| 513262 | FPM | 1" | 25 | 10 | 1 | PO-DA | MT05DA | |
| 513263 | FPM | 1 1/4" | 32 | 10 | 1 | PO-DA | MT15DA | |
| 513264 | FPM | 1 1/2" | 40 | 10 | 1 | PO-DA | MT15DA | |
| 513265 | FPM | 2" | 50 | 10 | 1 | PO-DA | MT15DA |
Technical drawing & dimensions
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | - |
| 15 | 20 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | 97 |
| 20 | 25 | 53.5 | 51 | 40 | 62 | 5.5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6.5 | 38 | 79.5 | 125 |
| 32 | 40 | 62 | 63.5 | 51 | 84 | 6.5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6.5 | 45 | 105.5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6.5 | 50 | 114 | 165 |
Dimensions in mm · letters as per drawing · valve body dimensions without actuator
