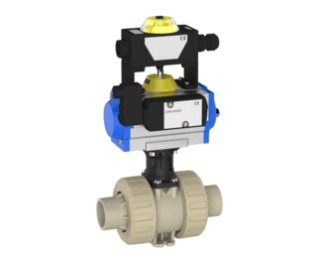

2-way ball valve M1 pneumatic with position feedback and solenoid valve, PP fusion spigot ends (PP-H)
Description
Modular 2-way industrial ball valve M1 in PP-H with pneumatic actuator with position feedback pi-250V and 5/2-3/2way solenoid valve (24VDC), silicone free. Connection as PP fusion spigot ends. Seat-sealing PTFE, sealing EPDM or FPM. Actuator function PO-NC, PO-NO or double-acting PO-DA (actuator type size-dependent). d16–d63 / DN10–DN50, PN10. Catalogue code 38M.
2-way ball valve M1 pneumatic with position feedback and solenoid valve – PP fusion spigot ends (PO-NC / PO-NO / PO-DA)
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack | Operating principle | Type |
|---|---|---|---|---|---|---|---|---|
| 513152 | EPDM | 16 | 10 | 10 | 1 | PO-NC | MT05-2 | |
| 513159 | FPM | 16 | 10 | 10 | 1 | PO-NC | MT05-2 | |
| 513166 | EPDM | 16 | 10 | 10 | 1 | PO-NO | MT05-2 | |
| 513173 | FPM | 16 | 10 | 10 | 1 | PO-NO | MT05-2 | |
| 513180 | EPDM | 16 | 10 | 10 | 1 | PO-DA | MT05DA | |
| 513187 | FPM | 16 | 10 | 10 | 1 | PO-DA | MT05DA | |
| 513153 | EPDM | 20 | 15 | 10 | 1 | PO-NC | MT05-2 | |
| 513160 | FPM | 20 | 15 | 10 | 1 | PO-NC | MT05-2 | |
| 513167 | EPDM | 20 | 15 | 10 | 1 | PO-NO | MT05-2 | |
| 513174 | FPM | 20 | 15 | 10 | 1 | PO-NO | MT05-2 | |
| 513181 | EPDM | 20 | 15 | 10 | 1 | PO-DA | MT05DA | |
| 513188 | FPM | 20 | 15 | 10 | 1 | PO-DA | MT05DA | |
| 513154 | EPDM | 25 | 20 | 10 | 1 | PO-NC | MT05-2 | |
| 513161 | FPM | 25 | 20 | 10 | 1 | PO-NC | MT05-2 | |
| 513168 | EPDM | 25 | 20 | 10 | 1 | PO-NO | MT05-2 | |
| 513175 | FPM | 25 | 20 | 10 | 1 | PO-NO | MT05-2 | |
| 513182 | EPDM | 25 | 20 | 10 | 1 | PO-DA | MT05DA | |
| 513189 | FPM | 25 | 20 | 10 | 1 | PO-DA | MT05DA | |
| 513155 | EPDM | 32 | 25 | 10 | 1 | PO-NC | MT05-2 | |
| 513162 | FPM | 32 | 25 | 10 | 1 | PO-NC | MT05-2 | |
| 513169 | EPDM | 32 | 25 | 10 | 1 | PO-NO | MT05-2 | |
| 513176 | FPM | 32 | 25 | 10 | 1 | PO-NO | MT05-2 | |
| 513183 | EPDM | 32 | 25 | 10 | 1 | PO-DA | MT05DA | |
| 513190 | FPM | 32 | 25 | 10 | 1 | PO-DA | MT05DA | |
| 513156 | EPDM | 40 | 32 | 10 | 1 | PO-NC | MT15-4 | |
| 513163 | FPM | 40 | 32 | 10 | 1 | PO-NC | MT15-4 | |
| 513170 | EPDM | 40 | 32 | 10 | 1 | PO-NO | MT15-4 | |
| 513177 | FPM | 40 | 32 | 10 | 1 | PO-NO | MT15-4 | |
| 513184 | EPDM | 40 | 32 | 10 | 1 | PO-DA | MT15DA | |
| 513191 | FPM | 40 | 32 | 10 | 1 | PO-DA | MT15DA | |
| 513157 | EPDM | 50 | 40 | 10 | 1 | PO-NC | MT15-4 | |
| 513164 | FPM | 50 | 40 | 10 | 1 | PO-NC | MT15-4 | |
| 513171 | EPDM | 50 | 40 | 10 | 1 | PO-NO | MT15-4 | |
| 513178 | FPM | 50 | 40 | 10 | 1 | PO-NO | MT15-4 | |
| 513185 | EPDM | 50 | 40 | 10 | 1 | PO-DA | MT15DA | |
| 513192 | FPM | 50 | 40 | 10 | 1 | PO-DA | MT15DA | |
| 513158 | EPDM | 63 | 50 | 10 | 1 | PO-NC | MT17-4 | |
| 513165 | FPM | 63 | 50 | 10 | 1 | PO-NC | MT17-4 | |
| 513172 | EPDM | 63 | 50 | 10 | 1 | PO-NO | MT17-4 | |
| 513179 | FPM | 63 | 50 | 10 | 1 | PO-NO | MT17-4 | |
| 513186 | EPDM | 63 | 50 | 10 | 1 | PO-DA | MT15DA | |
| 513193 | FPM | 63 | 50 | 10 | 1 | PO-DA | MT15DA |
Technical drawing & dimensions
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | - |
| 15 | 20 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | 97 |
| 20 | 25 | 53.5 | 51 | 40 | 62 | 5.5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6.5 | 38 | 79.5 | 125 |
| 32 | 40 | 62 | 63.5 | 51 | 84 | 6.5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6.5 | 45 | 105.5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6.5 | 50 | 114 | 165 |
Dimensions in mm · letters as per drawing · valve body dimensions without actuator
