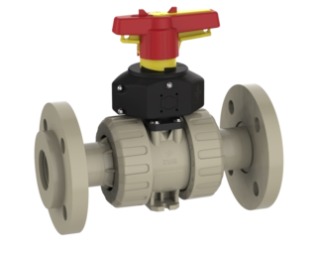

2-way ball valve M1 position feedback PNP, silicone free – Backing flange (ANSI) (PP-H)
Description
2-way modular industrial ball valve M1 in PP-H with Backing flange (ANSI) and integrated position feedback (limit switch pi PNP 10-30V DC), PTFE seat-sealing, silicone free, PN10.
Ball Valve 2W M1 PNP, Backing flange (ANSI)
- Backing flange (ANSI)
- long
- seat-sealing: PTFE
- limit switch: pi PNP 10-30V DC
- single packed
- silicone free
- material: PP-H
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack |
|---|---|---|---|---|---|---|
| 512490 | EPDM | 1/2" | 15 | 10 | 1 | |
| 512491 | EPDM | 3/4" | 20 | 10 | 1 | |
| 512492 | EPDM | 1" | 25 | 10 | 1 | |
| 512493 | EPDM | 1 1/4" | 32 | 10 | 1 | |
| 512494 | EPDM | 1 1/2" | 40 | 10 | 1 | |
| 512495 | EPDM | 2" | 50 | 10 | 1 | |
| 512496 | FPM | 1/2" | 15 | 10 | 1 | |
| 512497 | FPM | 3/4" | 20 | 10 | 1 | |
| 512498 | FPM | 1" | 25 | 10 | 1 | |
| 512499 | FPM | 1 1/4" | 32 | 10 | 1 | |
| 512500 | FPM | 1 1/2" | 40 | 10 | 1 | |
| 512501 | FPM | 2" | 50 | 10 | 1 |
Technical drawing & dimensions
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | - |
| 15 | 20 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | 97 |
| 20 | 25 | 53.5 | 51 | 40 | 62 | 5.5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6.5 | 38 | 79.5 | 125 |
| 32 | 40 | 62 | 63.5 | 51 | 84 | 6.5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6.5 | 45 | 105.5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6.5 | 50 | 114 | 165 |
Dimensions in mm · letters as per drawing · valve body dimensions without actuator
