2-way modular ball valve M1 silicone free, backing flange ANSI, long (PP-H)
Description

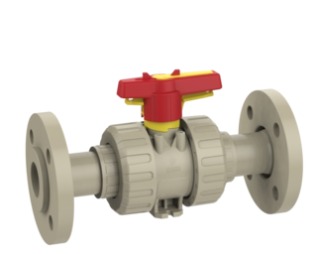

2-way modular industrial ball valve M1 in PP-H, silicone free, with backing flange ANSI, long (1/2"–4"), PTFE seat sealing, seal material EPDM or FPM, PN 10.
Ball Valve 2W M1 backing flange ANSI, long
- Backing flange
- seat-sealing: PTFE
- long
- single packed
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack |
|---|---|---|---|---|---|---|
| 129985 | EPDM | 1/2" | 15 | 10 | 9 | |
| 129991 | FPM | 1/2" | 15 | 10 | 9 | |
| 129986 | EPDM | 3/4" | 20 | 10 | 8 | |
| 129992 | FPM | 3/4" | 20 | 10 | 8 | |
| 129987 | EPDM | 1" | 25 | 10 | 6 | |
| 129993 | FPM | 1" | 25 | 10 | 6 | |
| 129988 | EPDM | 1 1/4" | 32 | 10 | 6 | |
| 129994 | FPM | 1 1/4" | 32 | 10 | 6 | |
| 129989 | EPDM | 1 1/2" | 40 | 10 | 4 | |
| 129995 | FPM | 1 1/2" | 40 | 10 | 4 | |
| 129990 | EPDM | 2" | 50 | 10 | 2 | |
| 129996 | FPM | 2" | 50 | 10 | 2 | |
| 210578 | EPDM | 2 1/2" | 65 | 10 | 1 | |
| 210581 | FPM | 2 1/2" | 65 | 10 | 1 | |
| 210579 | EPDM | 3" | 80 | 10 | 1 | |
| 210582 | FPM | 3" | 80 | 10 | 1 | |
| 210580 | EPDM | 4" | 80 | 10 | 1 | |
| 210583 | FPM | 4" | 80 | 10 | 1 |
Technical drawing & dimensions
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | - |
| 15 | 20 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | 97 |
| 20 | 25 | 53.5 | 51 | 40 | 62 | 5.5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6.5 | 38 | 79.5 | 125 |
| 32 | 40 | 62 | 63.5 | 51 | 84 | 6.5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6.5 | 45 | 105.5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6.5 | 50 | 114 | 165 |
Dimensions in mm · letters as per drawing
