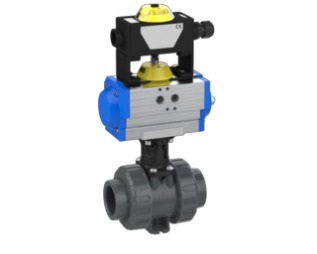

2-way modular industrial ball valve M1 pneumatic with position feedback, silicone free – female thread socket ends BSP (PVC-U)
Description
2-way modular industrial ball valve M1 in PVC-U with pneumatic actuator and position feedback (pi-250V), silicone free, PTFE seat, connection female thread socket ends R (BSP) (3/8"–2" / DN10–DN50), PN16, single-acting with spring return (PO-NC/PO-NO) or double-acting (PO-DA) and with either EPDM or FPM seal.
Ball Valve 2W M1 BSP – female thread socket ends R
- Connection: female thread socket ends R (BSP)
- seat-sealing: PTFE
- position feedback: pi-250V
- silicone free
- actuator: pneumatic (single-acting PO-NC/PO-NO with spring return or double-acting PO-DA)
- pneumatic actuator types: MT05-2, MT15-4, MT17-4 (single-acting), MT05DA, MT15DA (double-acting)
- seal material: EPDM or FPM
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack | Type | Actuation |
|---|---|---|---|---|---|---|---|---|
| 511384 | EPDM | 3/8" | 10 | 16 | 1 | MT05-2 | PO-NC | |
| 511385 | EPDM | 1/2" | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 511386 | EPDM | 3/4" | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 511387 | EPDM | 1" | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 511388 | EPDM | 1 1/4" | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 511389 | EPDM | 1 1/2" | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 511390 | EPDM | 2" | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 511391 | FPM | 3/8" | 10 | 16 | 1 | MT05-2 | PO-NC | |
| 511392 | FPM | 1/2" | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 511393 | FPM | 3/4" | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 511394 | FPM | 1" | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 511395 | FPM | 1 1/4" | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 511396 | FPM | 1 1/2" | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 511397 | FPM | 2" | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 511398 | EPDM | 3/8" | 10 | 16 | 1 | MT05-2 | PO-NO | |
| 511399 | EPDM | 1/2" | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 511400 | EPDM | 3/4" | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 511401 | EPDM | 1" | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 511402 | EPDM | 1 1/4" | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 511403 | EPDM | 1 1/2" | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 511404 | EPDM | 2" | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 511405 | FPM | 3/8" | 10 | 16 | 1 | MT05-2 | PO-NO | |
| 511406 | FPM | 1/2" | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 511407 | FPM | 3/4" | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 511408 | FPM | 1" | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 511409 | FPM | 1 1/4" | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 511410 | FPM | 1 1/2" | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 511411 | FPM | 2" | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 511412 | EPDM | 3/8" | 10 | 16 | 1 | MT05DA | PO-DA | |
| 511413 | EPDM | 1/2" | 15 | 16 | 1 | MT05DA | PO-DA | |
| 511414 | EPDM | 3/4" | 20 | 16 | 1 | MT05DA | PO-DA | |
| 511415 | EPDM | 1" | 25 | 16 | 1 | MT05DA | PO-DA | |
| 511416 | EPDM | 1 1/4" | 32 | 16 | 1 | MT15DA | PO-DA | |
| 511417 | EPDM | 1 1/2" | 40 | 16 | 1 | MT15DA | PO-DA | |
| 511418 | EPDM | 2" | 50 | 16 | 1 | MT15DA | PO-DA | |
| 511419 | FPM | 3/8" | 10 | 16 | 1 | MT05DA | PO-DA | |
| 511420 | FPM | 1/2" | 15 | 16 | 1 | MT05DA | PO-DA | |
| 511421 | FPM | 3/4" | 20 | 16 | 1 | MT05DA | PO-DA | |
| 511422 | FPM | 1" | 25 | 16 | 1 | MT05DA | PO-DA | |
| 511423 | FPM | 1 1/4" | 32 | 16 | 1 | MT15DA | PO-DA | |
| 511424 | FPM | 1 1/2" | 40 | 16 | 1 | MT15DA | PO-DA | |
| 511425 | FPM | 2" | 50 | 16 | 1 | MT15DA | PO-DA |
Technical drawing & dimensions
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | - |
| 15 | 20 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | 97 |
| 20 | 25 | 53.5 | 51 | 40 | 62 | 5.5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6.5 | 38 | 79.5 | 125 |
| 32 | 40 | 62 | 63.5 | 51 | 84 | 6.5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6.5 | 45 | 105.5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6.5 | 50 | 114 | 165 |
Dimensions in mm · letters as per drawing · valve body dimensions without actuator
