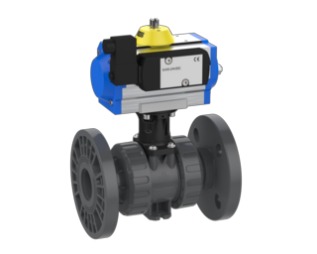

2-way modular industrial ball valve M1 pneumatic with solenoid valve, silicone free – DIN/ANSI/JIS fixed flange (PVC-U)
Description
2-way modular industrial ball valve M1 in PVC-U with pneumatic quarter-turn actuator and mounted 5/2-3/2way solenoid valve (24VDC), silicone free, PTFE seat-sealing, connection DIN/ANSI/JIS fixed flange (d20–d63 / DN15–DN50), PN16, with control functions PO-NC, PO-NO and PO-DA and with either EPDM or FPM seal.
Ball Valve 2W M1 DIN-ANSI-JIS – DIN/ANSI/JIS fixed flange
- Connection: DIN/ANSI/JIS fixed flange
- seat-sealing: PTFE
- silicone free
- Pneumatic quarter-turn actuator with mounted solenoid valve (5/2-3/2way), 24VDC
- Control functions: PO-NC, PO-NO, PO-DA
- Actuator types: MT05-2, MT15-4, MT17-4 (single acting) resp. MT05DA, MT15DA (double acting)
- Seal material selectable: EPDM or FPM
- material: PVC-U
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack | Type | Control function |
|---|---|---|---|---|---|---|---|---|
| 511870 | EPDM | 20 | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 511876 | FPM | 20 | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 511882 | EPDM | 20 | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 511888 | FPM | 20 | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 511894 | EPDM | 20 | 15 | 16 | 1 | MT05DA | PO-DA | |
| 511900 | FPM | 20 | 15 | 16 | 1 | MT05DA | PO-DA | |
| 511871 | EPDM | 25 | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 511877 | FPM | 25 | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 511883 | EPDM | 25 | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 511889 | FPM | 25 | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 511895 | EPDM | 25 | 20 | 16 | 1 | MT05DA | PO-DA | |
| 511901 | FPM | 25 | 20 | 16 | 1 | MT05DA | PO-DA | |
| 511872 | EPDM | 32 | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 511878 | FPM | 32 | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 511884 | EPDM | 32 | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 511890 | FPM | 32 | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 511896 | EPDM | 32 | 25 | 16 | 1 | MT05DA | PO-DA | |
| 511902 | FPM | 32 | 25 | 16 | 1 | MT05DA | PO-DA | |
| 511873 | EPDM | 40 | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 511879 | FPM | 40 | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 511885 | EPDM | 40 | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 511891 | FPM | 40 | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 511897 | EPDM | 40 | 32 | 16 | 1 | MT15DA | PO-DA | |
| 511903 | FPM | 40 | 32 | 16 | 1 | MT15DA | PO-DA | |
| 511874 | EPDM | 50 | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 511880 | FPM | 50 | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 511886 | EPDM | 50 | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 511892 | FPM | 50 | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 511898 | EPDM | 50 | 40 | 16 | 1 | MT15DA | PO-DA | |
| 511904 | FPM | 50 | 40 | 16 | 1 | MT15DA | PO-DA | |
| 511875 | EPDM | 63 | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 511881 | FPM | 63 | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 511887 | EPDM | 63 | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 511893 | FPM | 63 | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 511899 | EPDM | 63 | 50 | 16 | 1 | MT15DA | PO-DA | |
| 511905 | FPM | 63 | 50 | 16 | 1 | MT15DA | PO-DA |
Technical drawing & dimensions
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | - |
| 15 | 20 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | 97 |
| 20 | 25 | 53.5 | 51 | 40 | 62 | 5.5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6.5 | 38 | 79.5 | 125 |
| 32 | 40 | 62 | 63.5 | 51 | 84 | 6.5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6.5 | 45 | 105.5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6.5 | 50 | 114 | 165 |
Dimensions in mm · letters as per drawing · valve body dimensions without actuator
