2-way modular industrial ball valve M1 with position feedback PNP, silicone free – PE fusion socket (PVC-U)
Description

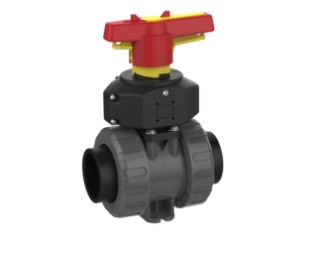

Modular 2-way industrial ball valve M1 made of PVC-U with inductive position feedback (pi PNP 10-30V DC), PTFE seat seal, silicone-free – version PE fusion socket (PE fusion socket (metric)), d16–d63 / DN10–DN50.
Ball Valve 2W M1 metric – PE fusion socket ends
- Modular 2-way industrial ball valve M1 made of PVC-U
- PE fusion socket ends (metric)
- Inductive position feedback: limit switch pi PNP 10-30V DC
- Seat-sealing: PTFE
- Silicone free
- Sealing materials: EPDM or FPM
- Single packed
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack |
|---|---|---|---|---|---|---|
| 510202 | EPDM | 16 | 10 | 16 | 1 | |
| 510209 | FPM | 16 | 10 | 16 | 1 | |
| 510203 | EPDM | 20 | 15 | 16 | 1 | |
| 510210 | FPM | 20 | 15 | 16 | 1 | |
| 510204 | EPDM | 25 | 20 | 16 | 1 | |
| 510211 | FPM | 25 | 20 | 16 | 1 | |
| 510205 | EPDM | 32 | 25 | 16 | 1 | |
| 510212 | FPM | 32 | 25 | 16 | 1 | |
| 510206 | EPDM | 40 | 32 | 16 | 1 | |
| 510213 | FPM | 40 | 32 | 16 | 1 | |
| 510207 | EPDM | 50 | 40 | 16 | 1 | |
| 510214 | FPM | 50 | 40 | 16 | 1 | |
| 510208 | EPDM | 63 | 50 | 16 | 1 | |
| 510215 | FPM | 63 | 50 | 16 | 1 |
Technical drawing & dimensions
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | - |
| 15 | 20 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | 97 |
| 20 | 25 | 53.5 | 51 | 40 | 62 | 5.5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6.5 | 38 | 79.5 | 125 |
| 32 | 40 | 62 | 63.5 | 51 | 84 | 6.5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6.5 | 45 | 105.5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6.5 | 50 | 114 | 165 |
Dimensions in mm · letters as per drawing · valve body dimensions without actuator
