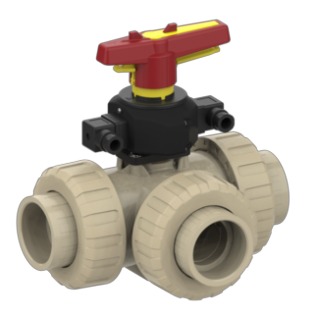

3-way ball valve M1 L-ball position feedback PNP, PP fusion socket ends (PP-H)
Description
3-way modular industrial ball valve M1 in PP-H with L-ball with integrated position feedback (PNP), PTFE seat-sealing, PP fusion socket ends, seal EPDM or FPM, d16–d63 (DN10–DN50), PN10.
Ball Valve 3W M1 L-ball position feedback PNP – PP fusion socket ends
- PP fusion socket ends
- seat-sealing: PTFE
- L-ball
- position feedback: PNP
- material: PP-H
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack |
|---|---|---|---|---|---|---|
| 513998 | EPDM | 16 | 10 | 10 | 15 | |
| 514005 | FPM | 16 | 10 | 10 | 15 | |
| 513999 | EPDM | 20 | 15 | 10 | 15 | |
| 514006 | FPM | 20 | 15 | 10 | 15 | |
| 514000 | EPDM | 25 | 20 | 10 | 15 | |
| 514007 | FPM | 25 | 20 | 10 | 15 | |
| 514001 | EPDM | 32 | 25 | 10 | 15 | |
| 514008 | FPM | 32 | 25 | 10 | 15 | |
| 514002 | EPDM | 40 | 32 | 10 | 5 | |
| 514009 | FPM | 40 | 32 | 10 | 5 | |
| 514003 | EPDM | 50 | 40 | 10 | 5 | |
| 514010 | FPM | 50 | 40 | 10 | 5 | |
| 514004 | EPDM | 63 | 50 | 10 | 4 | |
| 514011 | FPM | 63 | 50 | 10 | 4 |
