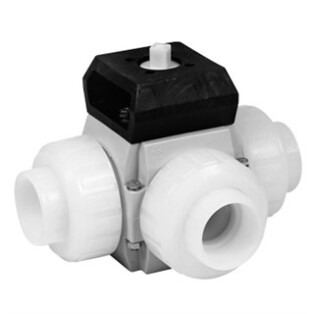

3-way ball valve S4 with automatic adapter set, L-ball, PVDF fusion socket ends (PVDF)
Description
3-way industrial ball valve type S4 made of PVDF with automatic adapter set (adapter for actuator mounting) and L-ball (L-bore), connection PVDF fusion socket ends. Seat-sealing PTFE, sealing material FPM. d16–d63 / DN10–DN50, PN16, VE 2. Catalogue code 64.
Ball Valve 3W S4, automatic adapter set, PVDF fusion socket ends, L-ball
- 3-way ball valve type S4
- Material: PVDF
- Equipment: automatic adapter set (adapter for actuator mounting)
- Ball type: L-ball (L-bore)
- Seat-sealing: PTFE
- Sealing material: FPM
- Connection: PVDF fusion socket ends
- Dimensions d16–d63 / DN10–DN50
- PN16
- Pack unit (VE) 2
- Catalogue code 64
| Art. No. (Praher) | KLN No. | d | DN |
|---|---|---|---|
| 125239 | 16 | 10 | |
| 125241 | 20 | 15 | |
| 125243 | 25 | 20 | |
| 125245 | 32 | 25 | |
| 125247 | 40 | 32 | |
| 125249 | 50 | 40 | |
| 125251 | 63 | 50 |
Technical drawing & dimensions
| d | DN | L | L1 | A | D | H | B | Y | C | Z |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 10 | 152 | 158 | 100 | 53 | 72 | 40 | 52.8 | 50 | 105.5 |
| 20 | 15 | 162 | 168 | 100 | 53 | 72 | 40 | 52.8 | 50 | 105.5 |
| 25 | 20 | 191 | 197 | 120 | 70 | 81.5 | 51.5 | 63 | 60 | 126 |
| 32 | 25 | 200 | 206 | 120 | 70 | 81.5 | 51.5 | 63.5 | 60 | 127 |
| 40 | 32 | 249 | 255 | 162 | 101 | 107.5 | 73 | 84.5 | 81 | 169 |
| 50 | 40 | 261 | 267 | 162 | 101 | 107.5 | 73 | 85.5 | 81 | 171 |
| 63 | 50 | 296 | 302 | 181 | 121.5 | 116.5 | 85 | 96.5 | 90.5 | 193 |
Dimensions in mm · letters as per drawing · valve body dimensions without actuator
