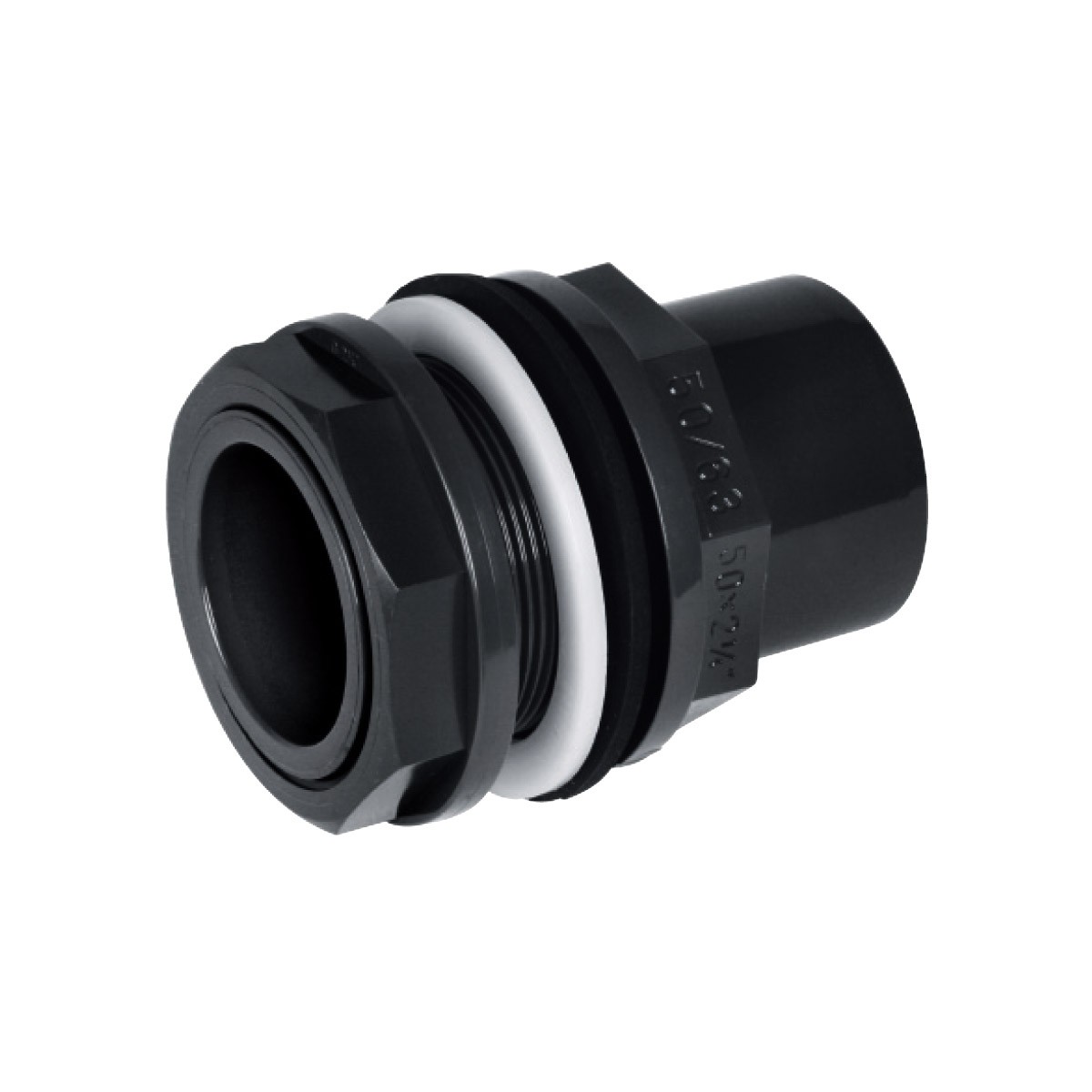

Container adaptor, solvent socket/spigot-male thread (PP)
Description
Container adaptor with solvent socket/spigot and male thread, dimensions 20/25 to 110/125, material EPDM + PP.
Container adaptor, solvent socket/spigot-male thread
- solvent socket/spigot-male thread
- material: EPDM + PP
| Art. No. (Praher) | KLN No. | d | Material | Pack |
|---|---|---|---|---|
| 73413 | 51514815 | 20/25-3/4" | EPDM + PP | 50 |
| 73414 | 51514816 | 25/32-1" | EPDM + PP | 50 |
| 73415 | 51514817 | 32/40-1 1/4" | EPDM + PP | 50 |
| 73416 | 51514818 | 40/50-1 3/4" | EPDM + PP | 50 |
| 73417 | 51514819 | 50/63-2" | EPDM + PP | 45 |
| 73418 | 51514820 | 50/63-2 1/4" | EPDM + PP | 45 |
| 73419 | 51514821 | 63/75-2 1/2" | EPDM + PP | 24 |
| 73420 | 51514822 | 75/90-3" | EPDM + PP | 21 |
| 73421 | 51514823 | 90/110-M113 | EPDM + PP | 10 |
| 73422 | 51514824 | d1=110/d2=125 G=M133 | EPDM + PP | 10 |
Technical drawing & dimensions
| d1 | d2 | d3 | Z1 | C | D | Weight [kg] |
|---|---|---|---|---|---|---|
| 20 | 25 | 3/4” | 13 | 19 | 42 | 0.04 |
| 25 | 32 | 1” | 15 | 22 | 45 | 0.07 |
| 32 | 40 | 11/4” | 17 | 26 | 47 | 0.12 |
| 40 | 50 | 13/4’’ | 19 | 31 | 48 | 0.21 |
| 50 | 63 | 2” | 21 | 38 | 52 | 0.26 |
| 50 | 63 | 21/4” | 21 | 38 | 52 | 0.34 |
| 63 | 75 | 21/2” | 23 | 44 | 53 | 0.38 |
| 75 | 90 | 3” | 36 | 51 | 56 | 0.58 |
| 90 | 110 | M113 | 32 | 61 | 62 | 1.14 |
| 110 | 125 | M133 | 36 | 69 | 66 | 1.55 |
Dimensions in mm · weight in kg · letters as per drawing
