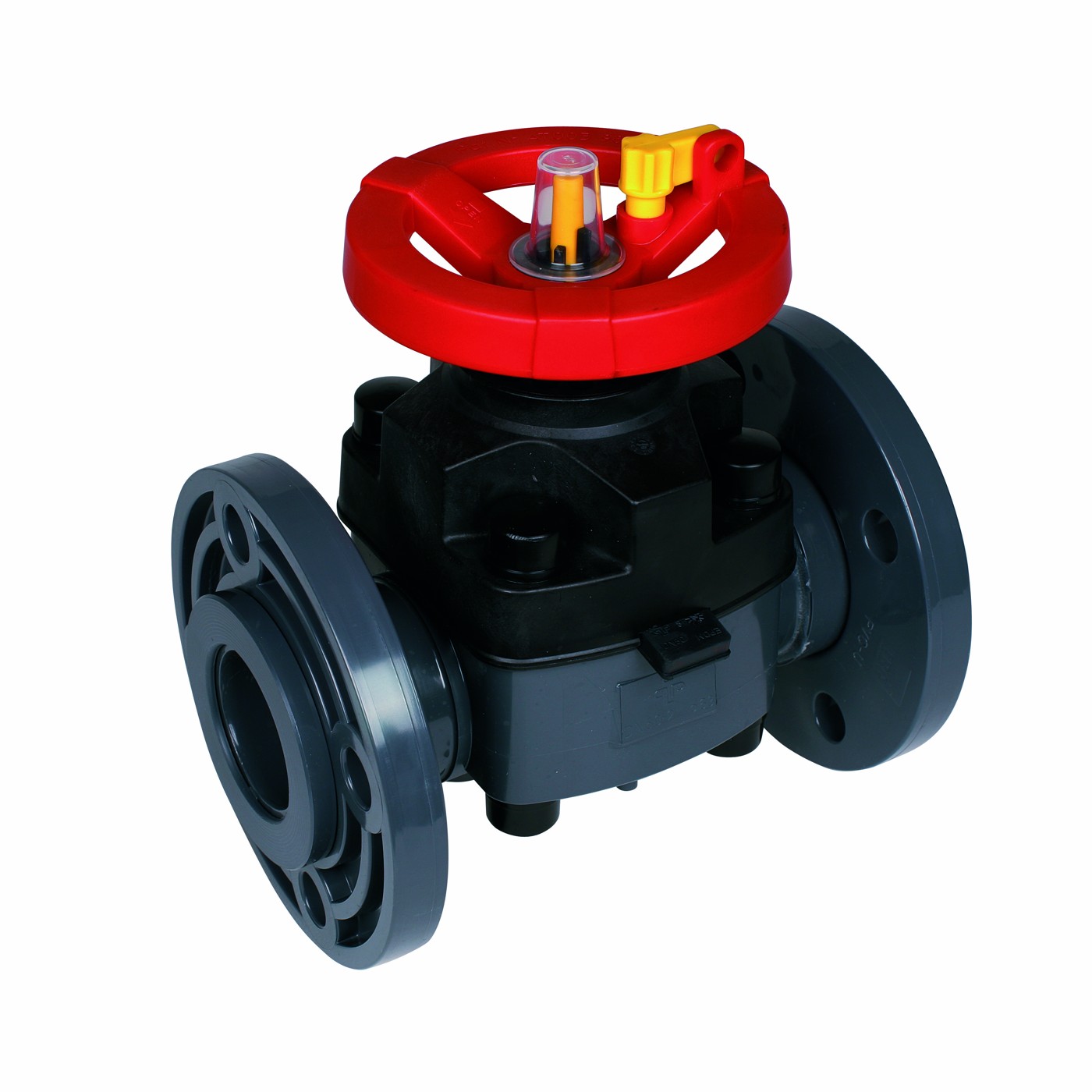

Diaphragm valve T4 with lockable handwheel – Fixed flange DIN-ANSI-JIS, DN80–DN125 (PVC-U)
Description
Diaphragm valve T4 in PVC-U with lockable handwheel. Connection: Fixed flange (DIN-ANSI-JIS). Diaphragm material EPDM or PTFE, PN 10. Sizes 90–140 / DN80–DN125 (code 80).
Diaphragm valve T4 Fixed flange DIN-ANSI-JIS, DN80–DN125
- Diaphragm valve T4 made of PVC-U
- With lockable handwheel
- Connection: Fixed flange (DIN-ANSI-JIS)
- Version: fix flange (DN125 = DIN fix flange)
- Diaphragm material: EPDM or PTFE
- Pressure rating: PN 10
| Art. No. (Praher) | KLN No. | Membrane | d | DN | PN | Pack |
|---|---|---|---|---|---|---|
| 120200 | 51510207 | EPDM | 90 | 80 | 10 | 1 |
| 120228 | 51510209 | PTFE | 90 | 80 | 10 | 1 |
| 120898 | 51510292 | EPDM | 110 | 100 | 10 | 1 |
| 120896 | 51510290 | PTFE | 110 | 100 | 10 | 1 |
| 120899 | 51510293 | EPDM | 140 | 125 | 10 | 1 |
| 120897 | 51510291 | PTFE | 140 | 125 | 10 | 1 |
