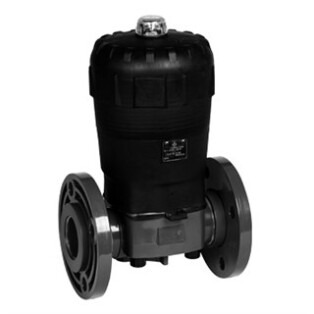

Diaphragm valve T4 with pneumatic actuator PO-NO – Fixed flange DIN-ANSI-JIS (PVC-U)
Description
Diaphragm valve T4 in PVC-U with pneumatic actuator (type K62–K123), actuator function PO-NO (spring-to-open, normally open). Connection: Fixed flange (DIN-ANSI-JIS). Diaphragm material EPDM or PTFE, PN 10. Sizes 20–63 / DN15–DN50 (code 81).
Diaphragm valve T4 pneumatic actuator PO-NO – Fixed flange DIN-ANSI-JIS
- Diaphragm valve T4 made of PVC-U
- With pneumatic actuator (type K62–K123)
- Actuator function: PO-NO (spring-to-open, normally open)
- Connection: Fixed flange (DIN-ANSI-JIS)
- Diaphragm material: EPDM or PTFE
- Pressure rating: PN 10
| Art. No. (Praher) | KLN No. | Membrane | d | DN | Type | PN | Pack |
|---|---|---|---|---|---|---|---|
| 126473 | EPDM | 20 | 15 | K62 | 10 | 1 | |
| 122760 | PTFE | 20 | 15 | K62 | 10 | 1 | |
| 126463 | EPDM | 25 | 20 | K62 | 10 | 1 | |
| 125641 | PTFE | 25 | 20 | K62 | 10 | 1 | |
| 123067 | EPDM | 32 | 25 | K82 | 10 | 1 | |
| 126063 | PTFE | 32 | 25 | K82 | 10 | 1 | |
| 126464 | EPDM | 40 | 32 | K122 | 10 | 1 | |
| 125615 | PTFE | 40 | 32 | K122 | 10 | 1 | |
| 126465 | EPDM | 50 | 40 | K122 | 10 | 1 | |
| 126070 | PTFE | 50 | 40 | K122 | 10 | 1 | |
| 126281 | EPDM | 63 | 50 | K123 | 10 | 1 | |
| 123351 | PTFE | 63 | 50 | K123 | 10 | 1 |
