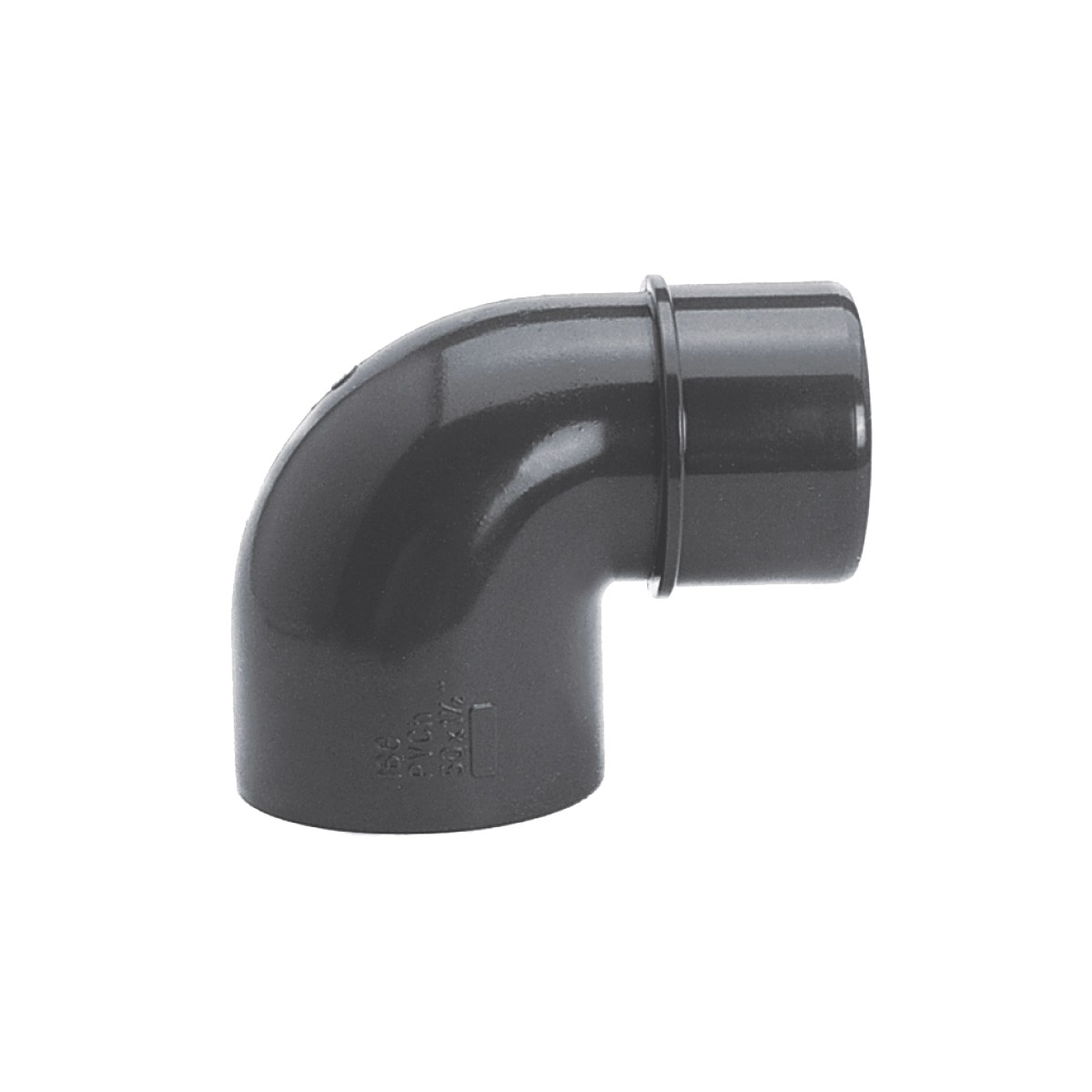

Elbow 90° solvent socket-solvent spigot, reduced (PVC-U)
Description
PVC-U elbow 90° reduced, solvent socket-solvent spigot, sizes 50-40-50 and 63-50-63, PN 10.
Elbow 90° solvent socket-solvent spigot, reduced
- solvent socket-solvent spigot
- reduced
- material: PVC-U
| Art. No. (Praher) | KLN No. | d | PN | Pack |
|---|---|---|---|---|
| 71317 | 51513724 | 50-40-50 | 10 | 40 |
| 71318 | 51513725 | 63-50-63 | 10 | 35 |
Technical drawing & dimensions
| d | DN | L | Z | L1 | E | H | Weight [kg] |
|---|---|---|---|---|---|---|---|
| 50-50/40 | 40 | 62 | 29 | 67.5 | 62 | 88 | 0.13 |
| 63-63/50 | 50 | 74 | 37.5 | 82 | 77 | 104 | 0.28 |
Dimensions in mm · weight in kg · letters as per drawing
