IBG® Pressure Hose Tails, Connector – Male Thread, PN10, grey
Description

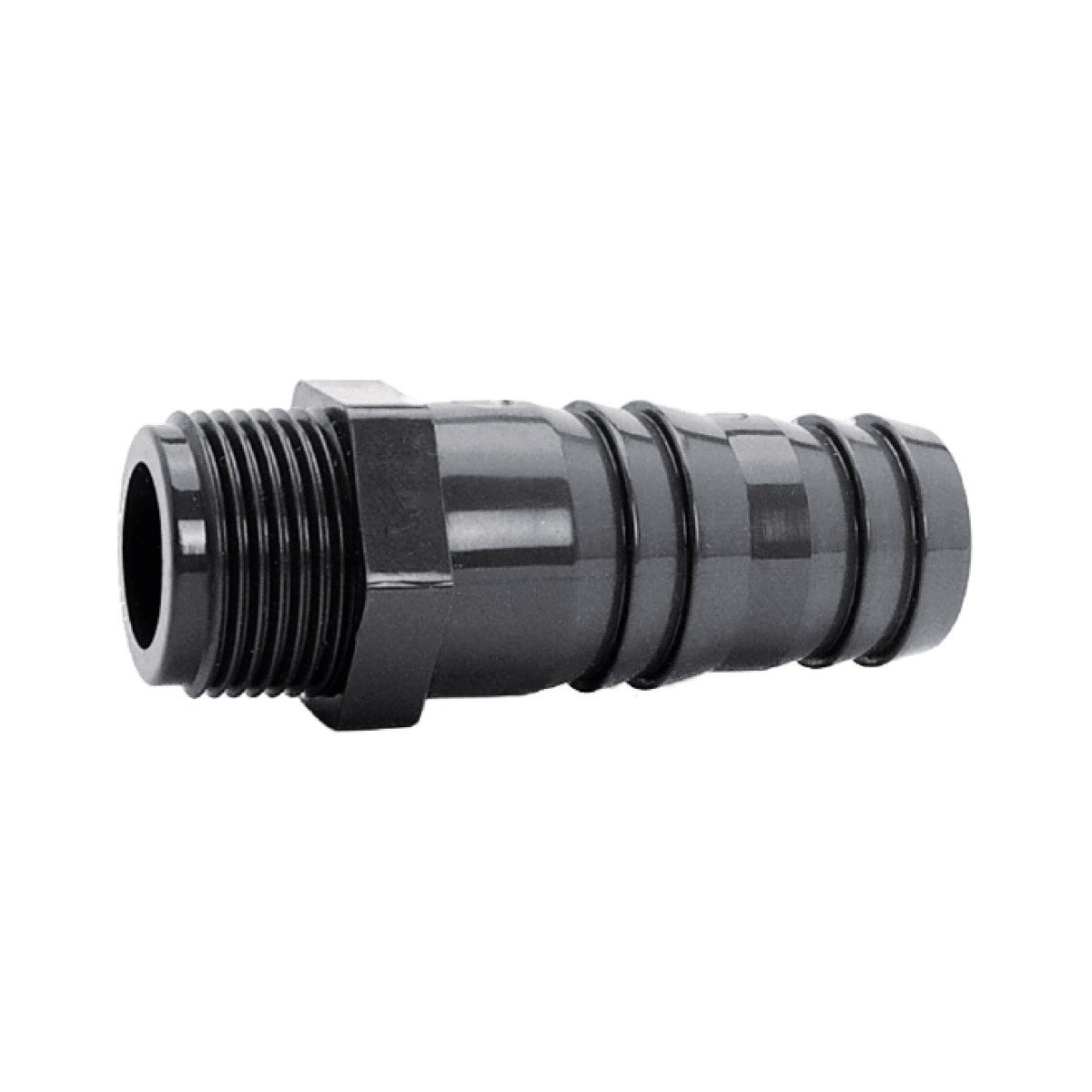

IBG® pressure hose tails (connector) in PVC-U (grey) with male thread, PN10. For hose diameters d 14–66 mm.
IBG® Pressure Hose Tails, Connector – Male Thread, PN10, grey
- Material: PVC-U grey
- Version: hose tail/connector with male thread
- Pressure rating: PN10
- Hose/thread d-d1-G 14-12-1/4" to 66-60-2"
- Nominal sizes DN8–DN50
| Art. No. (Peraplas) | KLN No. | d-d1-G | PN | DN | I | SW | Weight (kg) | Pack |
|---|---|---|---|---|---|---|---|---|
| 71146 | 51513559 | 14-12- 1/4" | 10 | 8 | 53 | 15 | 0.01 | 100.00 |
| 71147 | 51513560 | 18-16- 3/8" | 10 | 12 | 58 | 19 | 0.01 | 100.00 |
| 71148 | 51513561 | 22-20- 1/2" | 10 | 15 | 76 | 24 | 0.02 | 100.00 |
| 70931 | 51513409 | 28-25- 3/4" | 10 | 20 | 78 | 30 | 0.04 | 100.00 |
| 71150 | 51513562 | 34-31-1" | 10 | 25 | 90 | 35 | 0.05 | 100.00 |
| 71151 | 51513563 | 43-40-1 1/4" | 10 | 32 | 96 | 46 | 0.09 | 100.00 |
| 71152 | 51513564 | 53-50-1 1/2" | 10 | 40 | 115 | 55 | 0.14 | 100.00 |
| 71153 | 51513565 | 66-60-2" | 10 | 50 | 132 | 70 | 0.24 | 50.00 |
Technical drawing & dimensions
| d-d1-G | DN | l | SW | Weight [kg] |
|---|---|---|---|---|
| 14-12- 1/4“ | 8 | 53 | 15 | 0.01 |
| 18-16- 3/8“ | 12 | 58 | 19 | 0.01 |
| 22-20- 1/2“ | 15 | 76 | 24 | 0.02 |
| 28-25- 3/4“ | 20 | 78 | 30 | 0.04 |
| 34-31-1“ | 25 | 90 | 35 | 0.05 |
| 43-40-1 1/4“ | 32 | 96 | 46 | 0.09 |
| 53-50-1 1/2“ | 40 | 115 | 55 | 0.14 |
| 66-60-2“ | 50 | 132 | 70 | 0.24 |
Dimensions in mm · weight in kg · letters as per drawing
