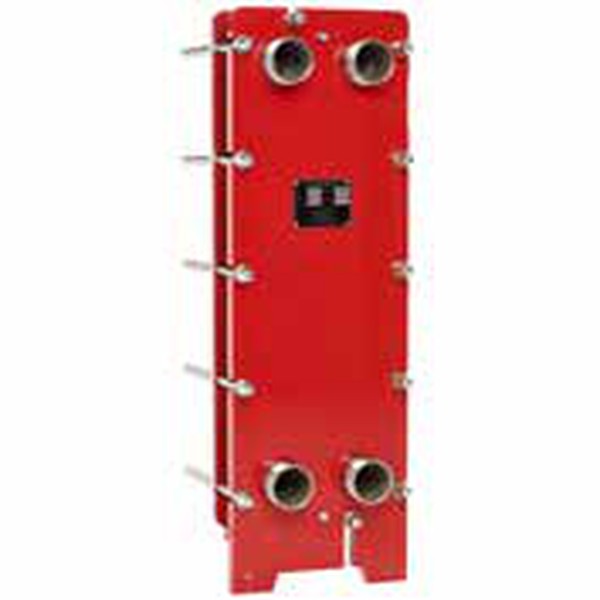

Titanium Plate Heat Exchanger
Description
Affordable titanium plate heat exchanger for heating and cooling commercial pools. The compact design offers maximum surface area with high mechanical robustness; high overall heat-transfer coefficient and high performance with low hold-up volume. Modular construction, easy cleaning through simple disassembly.
Titanium Plate Heat Exchanger
- Plates: titanium, frame: P335NH
- Seals: EPDM (max. 150 °C)
- Connection ports primary side and secondary side: stainless steel
- Bolts M12: A193B7
- Temperature: -10/100 °C
- Pressure: 10 bar / test pressure: 14.3 bar
- High overall heat-transfer coefficient
- High performance with low hold-up volume
- Versatile, modular construction
- Connection: thread M G 1 1/4" AISI 304
| Art. No. (Peraplas) | KLN No. | Product | Weight (kg) | Pack |
|---|---|---|---|---|
| 7301545 | 51514762 | Titanium plate heat exchanger 30 kW | 24.26 | 1.00 |
| 7301546 | 51514763 | Titanium plate heat exchanger 50 kW | 24.85 | 1.00 |
| 7301547 | 51514764 | Titanium plate heat exchanger 80 kW | 26.04 | 1.00 |
| 7301548 | 51514765 | Titanium plate heat exchanger 102 kW | 31.00 | 1.00 |
