2-weg modulaire industriële kogelkraan M1 pneumatisch met standterugmelding en magneetklep, siliconenvrij – DIN/ANSI/JIS-vaste flens (PVC-U)
Beschrijving

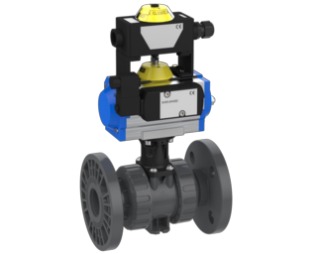

2-weg modulaire industriële kogelkraan M1 van PVC-U, pneumatisch aangedreven met standterugmelding (schakelaar pi 250 V) en geïntegreerde magneetklep (5/2-3/2-weg, 24 V DC), siliconenvrij, zittingafdichting PTFE, aansluiting vaste flens (DIN/ANSI/JIS) (d20–d63 / DN15–DN50), PN16, met de aandrijffuncties PO-NC, PO-NO of PO-DA en naar keuze EPDM- of FPM-afdichting.
Kogelkraan 2W M1 DIN-ANSI-JIS – vaste flens
- Aansluiting: vaste flens (DIN/ANSI/JIS)
- Zittingafdichting: PTFE
- siliconenvrij
- Aandrijving: pneumatisch (M1) met standterugmelding en magneetklep
- Standterugmelding: schakelaar pi 250 V
- Magneetklep: 5/2-3/2-weg, 24 V DC
- Aandrijffunctie: PO-NC, PO-NO of PO-DA
- Afdichtingsmateriaal: EPDM of FPM
| Art.nr. (Praher) | KLN-nr. | Afdichting | d | DN | PN | VE | Typ | Aansturing |
|---|---|---|---|---|---|---|---|---|
| 512236 | EPDM | 20 | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 512242 | FPM | 20 | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 512248 | EPDM | 20 | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 512254 | FPM | 20 | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 512260 | EPDM | 20 | 15 | 16 | 1 | MT05DA | PO-DA | |
| 512266 | FPM | 20 | 15 | 16 | 1 | MT05DA | PO-DA | |
| 512237 | EPDM | 25 | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 512243 | FPM | 25 | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 512249 | EPDM | 25 | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 512255 | FPM | 25 | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 512261 | EPDM | 25 | 20 | 16 | 1 | MT05DA | PO-DA | |
| 512267 | FPM | 25 | 20 | 16 | 1 | MT05DA | PO-DA | |
| 512238 | EPDM | 32 | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 512244 | FPM | 32 | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 512250 | EPDM | 32 | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 512256 | FPM | 32 | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 512262 | EPDM | 32 | 25 | 16 | 1 | MT05DA | PO-DA | |
| 512268 | FPM | 32 | 25 | 16 | 1 | MT05DA | PO-DA | |
| 512239 | EPDM | 40 | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 512245 | FPM | 40 | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 512251 | EPDM | 40 | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 512257 | FPM | 40 | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 512263 | EPDM | 40 | 32 | 16 | 1 | MT15DA | PO-DA | |
| 512269 | FPM | 40 | 32 | 16 | 1 | MT15DA | PO-DA | |
| 512240 | EPDM | 50 | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 512246 | FPM | 50 | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 512252 | EPDM | 50 | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 512258 | FPM | 50 | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 512264 | EPDM | 50 | 40 | 16 | 1 | MT15DA | PO-DA | |
| 512270 | FPM | 50 | 40 | 16 | 1 | MT15DA | PO-DA | |
| 512241 | EPDM | 63 | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 512247 | FPM | 63 | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 512253 | EPDM | 63 | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 512259 | FPM | 63 | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 512265 | EPDM | 63 | 50 | 16 | 1 | MT15DA | PO-DA | |
| 512271 | FPM | 63 | 50 | 16 | 1 | MT15DA | PO-DA |
Technische tekening & afmetingen
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39,5 | 33 | 55,5 | 5,5 | 34 | 70,5 | - |
| 15 | 20 | 45 | 39,5 | 33 | 55,5 | 5,5 | 34 | 70,5 | 97 |
| 20 | 25 | 53,5 | 51 | 40 | 62 | 5,5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6,5 | 38 | 79,5 | 125 |
| 32 | 40 | 62 | 63,5 | 51 | 84 | 6,5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6,5 | 45 | 105,5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6,5 | 50 | 114 | 165 |
Maten in mm · letters volgens tekening · Maße des Ventilkörpers ohne Antrieb
