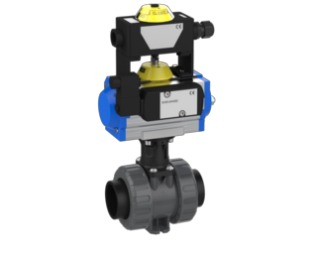

2-weg modulaire industriële kogelkraan M1 pneumatisch met standterugmelding en magneetklep, siliconenvrij – PE lasspie metrisch (PVC-U)
Beschrijving
2-weg modulaire industriële kogelkraan M1 van PVC-U, pneumatisch aangedreven met standterugmelding (schakelaar pi 250 V) en geïntegreerde magneetklep (5/2-3/2-weg, 24 V DC), siliconenvrij, zittingafdichting PTFE, aansluiting PE lasspie (metrisch) (d16–d63 / DN10–DN50), PN16, met de aandrijffuncties PO-NC, PO-NO of PO-DA en naar keuze EPDM- of FPM-afdichting.
Kogelkraan 2W M1 metrisch – PE lasspie
- Aansluiting: PE lasspie (metrisch)
- Zittingafdichting: PTFE
- siliconenvrij
- Aandrijving: pneumatisch (M1) met standterugmelding en magneetklep
- Standterugmelding: schakelaar pi 250 V
- Magneetklep: 5/2-3/2-weg, 24 V DC
- Aandrijffunctie: PO-NC, PO-NO of PO-DA
- Afdichtingsmateriaal: EPDM of FPM
| Art.nr. (Praher) | KLN-nr. | Afdichting | d | DN | PN | VE | Typ | Aansturing |
|---|---|---|---|---|---|---|---|---|
| 512314 | EPDM | 16 | 10 | 16 | 1 | MT05-2 | PO-NC | |
| 512321 | FPM | 16 | 10 | 16 | 1 | MT05-2 | PO-NC | |
| 512328 | EPDM | 16 | 10 | 16 | 1 | MT05-2 | PO-NO | |
| 512335 | FPM | 16 | 10 | 16 | 1 | MT05-2 | PO-NO | |
| 512342 | EPDM | 16 | 10 | 16 | 1 | MT05DA | PO-DA | |
| 512349 | FPM | 16 | 10 | 16 | 1 | MT05DA | PO-DA | |
| 512315 | EPDM | 20 | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 512322 | FPM | 20 | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 512329 | EPDM | 20 | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 512336 | FPM | 20 | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 512343 | EPDM | 20 | 15 | 16 | 1 | MT05DA | PO-DA | |
| 512350 | FPM | 20 | 15 | 16 | 1 | MT05DA | PO-DA | |
| 512316 | EPDM | 25 | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 512323 | FPM | 25 | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 512330 | EPDM | 25 | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 512337 | FPM | 25 | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 512344 | EPDM | 25 | 20 | 16 | 1 | MT05DA | PO-DA | |
| 512351 | FPM | 25 | 20 | 16 | 1 | MT05DA | PO-DA | |
| 512317 | EPDM | 32 | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 512324 | FPM | 32 | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 512331 | EPDM | 32 | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 512338 | FPM | 32 | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 512345 | EPDM | 32 | 25 | 16 | 1 | MT05DA | PO-DA | |
| 512352 | FPM | 32 | 25 | 16 | 1 | MT05DA | PO-DA | |
| 512318 | EPDM | 40 | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 512325 | FPM | 40 | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 512332 | EPDM | 40 | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 512339 | FPM | 40 | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 512346 | EPDM | 40 | 32 | 16 | 1 | MT15DA | PO-DA | |
| 512353 | FPM | 40 | 32 | 16 | 1 | MT15DA | PO-DA | |
| 512319 | EPDM | 50 | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 512326 | FPM | 50 | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 512333 | EPDM | 50 | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 512340 | FPM | 50 | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 512347 | EPDM | 50 | 40 | 16 | 1 | MT15DA | PO-DA | |
| 512354 | FPM | 50 | 40 | 16 | 1 | MT15DA | PO-DA | |
| 512320 | EPDM | 63 | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 512327 | FPM | 63 | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 512334 | EPDM | 63 | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 512341 | FPM | 63 | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 512348 | EPDM | 63 | 50 | 16 | 1 | MT15DA | PO-DA | |
| 512355 | FPM | 63 | 50 | 16 | 1 | MT15DA | PO-DA |
Technische tekening & afmetingen
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39,5 | 33 | 55,5 | 5,5 | 34 | 70,5 | - |
| 15 | 20 | 45 | 39,5 | 33 | 55,5 | 5,5 | 34 | 70,5 | 97 |
| 20 | 25 | 53,5 | 51 | 40 | 62 | 5,5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6,5 | 38 | 79,5 | 125 |
| 32 | 40 | 62 | 63,5 | 51 | 84 | 6,5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6,5 | 45 | 105,5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6,5 | 50 | 114 | 165 |
Maten in mm · letters volgens tekening · Maße des Ventilkörpers ohne Antrieb
