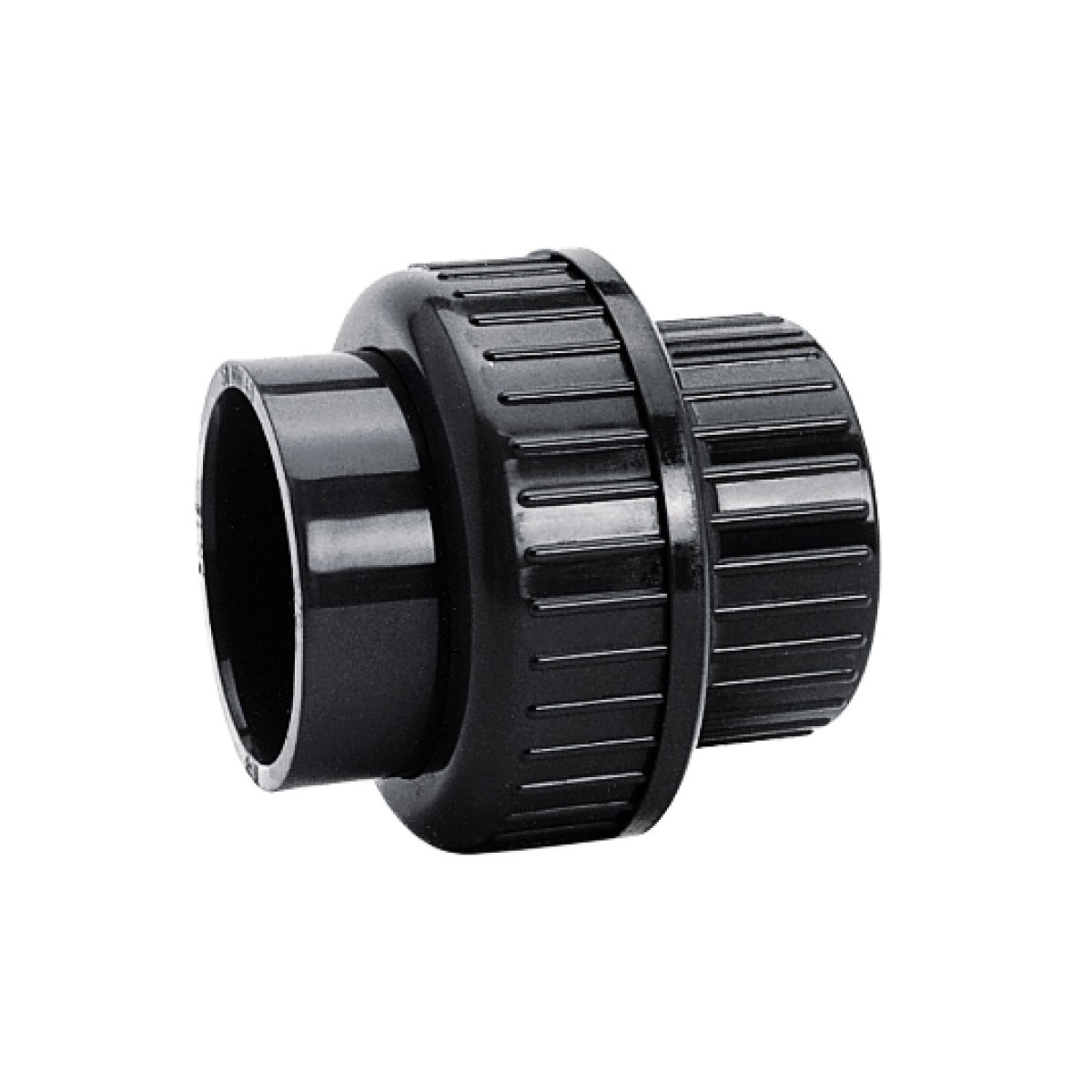

Koppeling metrisch, PVCu lijmmof (PVC-U)
Beschrijving
PVC-U koppeling metrisch (PVCu lijmmof) uit de IBG-reeks voor losneembare buisverbinding, afmetingen d10 tot d110.
Koppeling metrisch, PVCu lijmmof
- PVCu lijmmof
- materiaal: PVC-U
| Art.nr. (Praher) | KLN-nr. | d | PN | VE |
|---|---|---|---|---|
| 72114 | 00000817 | d10 | 16 | 200 |
| 71116 | 51513531 | d12 | 16 | 200 |
| 70682 | 51513199 | d16 | 16 | 100 |
| 70513 | 51513086 | d20 | 16 | 100 |
| 70683 | 51513200 | d25 | 16 | 100 |
| 70514 | 51513087 | d32 | 16 | 100 |
| 70515 | 51513088 | d40 | 16 | 60 |
| 70684 | 51513201 | d50 | 16 | 32 |
| 70685 | 51513202 | d63 | 16 | 20 |
| 70686 | 51513203 | d75 | 10 | 20 |
| 70687 | 51513204 | d90 | 6 | 20 |
| 70688 | 51513205 | d110 | 6 | 6 |
Technische tekening & afmetingen
| d | DN | E | G | L | l | l1 | Z | Gewicht [kg] |
|---|---|---|---|---|---|---|---|---|
| 10 | 6 | 31 | 5/8" | 37 | 15 | 22 | 13 | 0.03 |
| 12 | 8 | 29 | 5/8" | 38 | 15 | 22 | 13 | 0.02 |
| 16 | 10 | 34 | 3/4" | 41 | 17 | 24 | 13 | 0.03 |
| 20 | 15 | 42 | 1" | 45 | 19 | 26 | 13 | 0.04 |
| 25 | 20 | 53 | 11/4" | 51 | 22 | 29 | 13 | 0.06 |
| 32 | 25 | 58 | 11/2" | 58 | 25 | 33 | 13 | 0.09 |
| 40 | 32 | 73 | 2" | 67 | 29 | 38 | 15 | 0.15 |
| 50 | 40 | 83 | 21/4" | 80 | 34 | 45 | 17 | 0.19 |
| 63 | 50 | 103 | 23/4" | 99 | 42 | 56 | 21 | 0.36 |
| 75 | 65 | 118 | 31/2" | 108 | 47 | 62 | 20 | 0.60 |
| 90 | 80 | 135 | 4" | 124 | 56 | 68 | 22 | 0.75 |
| 110 | 100 | 163 | 5" | 138 | 66 | 72 | 16 | 1.16 |
| Ocean Verschraubung, PN06, grau | B-kg | VE | Art.-Nr. | Preis € | Ocean Verschraubung Klebemuffe/Klebemuffe | Verschraubung Ocean PVC grau PVCu Klebemuffe d50 metrisch | EPDM | 0.10 |
Maten in mm · gewicht in kg · letters volgens tekening
