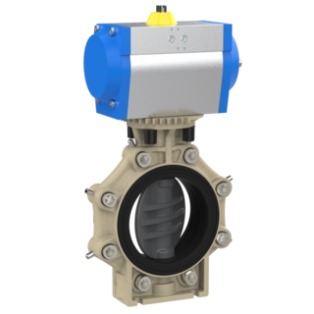

Absperrklappe K4 Lug Type ANSI mit Pneumatikantrieb (PVC-U)
Absperrklappe K4 aus PVC-U mit Pneumatikantrieb, Lug Type (ANSI), Flanschanschluss, DN65–DN250, Funktionen PO-NC (federrückstellend geschlossen), PO-NO (federrückstellend offen) und PO-DA (doppeltwirkend), Antriebstypen MT17DA–MT60; DN250 lose verpackt; Dichtung EPDM oder FPM.
Beschreibung
Absperrklappe K4 Lug Type ANSI mit Pneumatikantrieb
- Absperrklappe K4 aus PVC-U mit Pneumatikantrieb
- Lug Type (ANSI), Flanschanschluss
- Funktionen: PO-NC, PO-NO, PO-DA
- Antriebstypen MT17DA–MT60
- DN250 lose verpackt (Absperrklappe, Antrieb, Reduktion)
- Dichtungswerkstoff: EPDM oder FPM
| Art.-Nr. (Praher) | KLN-Nr. | Dichtung | d | DN | Funktion | Typ | PN | VE |
|---|---|---|---|---|---|---|---|---|
| 541101 | EPDM | 2 1/2" | 65 | PO-NC | MT25-4 | 10 | 1 | |
| 541102 | EPDM | 3" | 80 | PO-NC | MT30-4 | 10 | 1 | |
| 541103 | EPDM | 4" | 100 | PO-NC | MT35-4 | 10 | 1 | |
| 541104 | EPDM | 5" | 125 | PO-NC | MT40-5 | 10 | 1 | |
| 541105 | EPDM | 6" | 150 | PO-NC | MT45-5 | 10 | 1 | |
| 541106 | EPDM | 8" | 200 | PO-NC | MT50-5 | 10 | 1 | |
| 541107 | EPDM | 10" | 250 | PO-NC | MT60-5 | 8 | 1 | |
| 541121 | FPM | 2 1/2" | 65 | PO-NC | MT25-4 | 10 | 1 | |
| 541122 | FPM | 3" | 80 | PO-NC | MT30-4 | 10 | 1 | |
| 541123 | FPM | 4" | 100 | PO-NC | MT35-4 | 10 | 1 | |
| 541124 | FPM | 5" | 125 | PO-NC | MT40-5 | 10 | 1 | |
| 541125 | FPM | 6" | 150 | PO-NC | MT45-5 | 10 | 1 | |
| 541126 | FPM | 8" | 200 | PO-NC | MT50-5 | 10 | 1 | |
| 541127 | FPM | 10" | 250 | PO-NC | MT60-5 | 8 | 1 | |
| 541111 | EPDM | 2 1/2" | 65 | PO-NO | MT25-4 | 10 | 1 | |
| 541112 | EPDM | 3" | 80 | PO-NO | MT30-4 | 10 | 1 | |
| 541113 | EPDM | 4" | 100 | PO-NO | MT35-4 | 10 | 1 | |
| 541114 | EPDM | 5" | 125 | PO-NO | MT40-5 | 10 | 1 | |
| 541115 | EPDM | 6" | 150 | PO-NO | MT45-4 | 10 | 1 | |
| 541116 | EPDM | 8" | 200 | PO-NO | MT50-4 | 10 | 1 | |
| 541117 | EPDM | 10" | 250 | PO-NO | MT60-4 | 8 | 1 | |
| 541131 | FPM | 2 1/2" | 65 | PO-NO | MT25-4 | 10 | 1 | |
| 541132 | FPM | 3" | 80 | PO-NO | MT30-4 | 10 | 1 | |
| 541133 | FPM | 4" | 100 | PO-NO | MT35-4 | 10 | 1 | |
| 541134 | FPM | 5" | 125 | PO-NO | MT40-5 | 10 | 1 | |
| 541135 | FPM | 6" | 150 | PO-NO | MT45-4 | 10 | 1 | |
| 541136 | FPM | 8" | 200 | PO-NO | MT50-4 | 10 | 1 | |
| 541137 | FPM | 10" | 250 | PO-NO | MT60-4 | 8 | 1 | |
| 541141 | EPDM | 2 1/2" | 65 | PO-DA | MT17DA | 10 | 1 | |
| 541142 | EPDM | 3" | 80 | PO-DA | MT20DA | 10 | 1 | |
| 541143 | EPDM | 4" | 100 | PO-DA | MT25DA | 10 | 1 | |
| 541144 | EPDM | 5" | 125 | PO-DA | MT30DA | 10 | 1 | |
| 541145 | EPDM | 6" | 150 | PO-DA | MT35DA | 10 | 1 | |
| 541146 | EPDM | 8" | 200 | PO-DA | MT40DA | 10 | 1 | |
| 541147 | EPDM | 10" | 250 | PO-DA | MT50DA | 8 | 1 | |
| 541151 | FPM | 2 1/2" | 65 | PO-DA | MT17DA | 10 | 1 | |
| 541152 | FPM | 3" | 80 | PO-DA | MT20DA | 10 | 1 | |
| 541153 | FPM | 4" | 100 | PO-DA | MT25DA | 10 | 1 | |
| 541154 | FPM | 5" | 125 | PO-DA | MT30DA | 10 | 1 | |
| 541155 | FPM | 6" | 150 | PO-DA | MT35DA | 10 | 1 | |
| 541156 | FPM | 8" | 200 | PO-DA | MT40DA | 10 | 1 | |
| 541157 | FPM | 10" | 250 | PO-DA | MT50DA | 8 | 1 |
Downloads & Anleitungen
Zusätzliche Informationen
| Material | PVC-U |
|---|---|
| Druckstufe | PN10, PN8 |
| Einsatzbereich | Industrie & Prozess |
