Absperrklappe K4 Lug Type DIN mit Pneumatikantrieb (PP-H)
Absperrklappe K4 aus PP-H mit Pneumatikantrieb (PO-NC/PO-NO federrückstellend, PO-DA doppeltwirkend), Lug Type (DIN), Flanschanschluss, DN65–DN250, Antriebe MT25-4–MT60-5 bzw. MT17DA–MT50DA; DN250 lose verpackt; Dichtung EPDM oder FPM.
Beschreibung

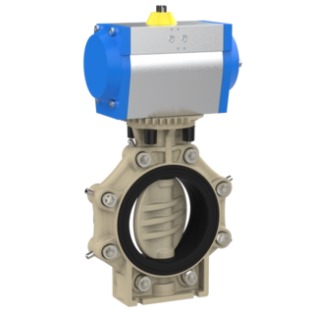

Absperrklappe K4 Lug Type DIN mit Pneumatikantrieb
- Absperrklappe K4 aus PP-H mit Pneumatikantrieb
- Ausführung: Lug Type DIN, Flanschanschluss
- Antriebsfunktionen: PO-NC, PO-NO (einfachwirkend/federrückstellend), PO-DA (doppeltwirkend)
- Antriebstypen je nach Größe: MT25-4–MT60-5 (federrückstellend) bzw. MT17DA–MT50DA (doppeltwirkend)
- DN250 lose verpackt (Absperrklappe, Antrieb, Reduktion)
- Dichtungswerkstoff wahlweise EPDM oder FPM
- PN10 (DN250: PN8)
| Art.-Nr. (Praher) | KLN-Nr. | Dichtung | d | DN | Funktion | Typ | PN | VE |
|---|---|---|---|---|---|---|---|---|
| 543001 | EPDM | 75 | 65 | PO-NC | MT25-4 | 10 | 1 | |
| 543021 | FPM | 75 | 65 | PO-NC | MT25-4 | 10 | 1 | |
| 543011 | EPDM | 75 | 65 | PO-NO | MT25-4 | 10 | 1 | |
| 543031 | FPM | 75 | 65 | PO-NO | MT25-4 | 10 | 1 | |
| 543041 | EPDM | 75 | 65 | PO-DA | MT17DA | 10 | 1 | |
| 543051 | FPM | 75 | 65 | PO-DA | MT17DA | 10 | 1 | |
| 543002 | EPDM | 90 | 80 | PO-NC | MT30-4 | 10 | 1 | |
| 543022 | FPM | 90 | 80 | PO-NC | MT30-4 | 10 | 1 | |
| 543012 | EPDM | 90 | 80 | PO-NO | MT30-4 | 10 | 1 | |
| 543032 | FPM | 90 | 80 | PO-NO | MT30-4 | 10 | 1 | |
| 543042 | EPDM | 90 | 80 | PO-DA | MT20DA | 10 | 1 | |
| 543052 | FPM | 90 | 80 | PO-DA | MT20DA | 10 | 1 | |
| 543003 | EPDM | 110 | 100 | PO-NC | MT35-4 | 10 | 1 | |
| 543023 | FPM | 110 | 100 | PO-NC | MT35-4 | 10 | 1 | |
| 543013 | EPDM | 110 | 100 | PO-NO | MT35-4 | 10 | 1 | |
| 543033 | FPM | 110 | 100 | PO-NO | MT35-4 | 10 | 1 | |
| 543043 | EPDM | 110 | 100 | PO-DA | MT25DA | 10 | 1 | |
| 543053 | FPM | 110 | 100 | PO-DA | MT25DA | 10 | 1 | |
| 543004 | EPDM | 140 | 125 | PO-NC | MT40-5 | 10 | 1 | |
| 543024 | FPM | 140 | 125 | PO-NC | MT40-5 | 10 | 1 | |
| 543014 | EPDM | 140 | 125 | PO-NO | MT40-5 | 10 | 1 | |
| 543034 | FPM | 140 | 125 | PO-NO | MT40-5 | 10 | 1 | |
| 543044 | EPDM | 140 | 125 | PO-DA | MT30DA | 10 | 1 | |
| 543054 | FPM | 140 | 125 | PO-DA | MT30DA | 10 | 1 | |
| 543005 | EPDM | 160 | 150 | PO-NC | MT45-5 | 10 | 1 | |
| 543025 | FPM | 160 | 150 | PO-NC | MT45-5 | 10 | 1 | |
| 543015 | EPDM | 160 | 150 | PO-NO | MT45-4 | 10 | 1 | |
| 543035 | FPM | 160 | 150 | PO-NO | MT45-4 | 10 | 1 | |
| 543045 | EPDM | 160 | 150 | PO-DA | MT35DA | 10 | 1 | |
| 543055 | FPM | 160 | 150 | PO-DA | MT35DA | 10 | 1 | |
| 543006 | EPDM | 225 | 200 | PO-NC | MT50-5 | 10 | 1 | |
| 543026 | FPM | 225 | 200 | PO-NC | MT50-5 | 10 | 1 | |
| 543016 | EPDM | 225 | 200 | PO-NO | MT50-4 | 10 | 1 | |
| 543036 | FPM | 225 | 200 | PO-NO | MT50-4 | 10 | 1 | |
| 543046 | EPDM | 225 | 200 | PO-DA | MT40DA | 10 | 1 | |
| 543056 | FPM | 225 | 200 | PO-DA | MT40DA | 10 | 1 | |
| 543007 | EPDM | 280 | 250 | PO-NC | MT60-5 | 8 | 1 | |
| 543027 | FPM | 280 | 250 | PO-NC | MT60-5 | 8 | 1 | |
| 543017 | EPDM | 280 | 250 | PO-NO | MT60-4 | 8 | 1 | |
| 543037 | FPM | 280 | 250 | PO-NO | MT60-4 | 8 | 1 | |
| 543047 | EPDM | 280 | 250 | PO-DA | MT50DA | 8 | 1 | |
| 543057 | FPM | 280 | 250 | PO-DA | MT50DA | 8 | 1 |
Downloads & Anleitungen
Zusätzliche Informationen
| Material | PP-H |
|---|---|
| Druckstufe | PN10, PN8 |
| Einsatzbereich | Industrie & Prozess |
