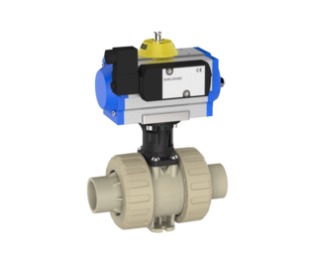

2-way ball valve M1 pneumatic with solenoid valve, PP fusion spigot ends (PP-H)
Description
Modular 2-way industrial ball valve M1 in PP-H with pneumatic actuator and 5/2-3/2way solenoid valve (24VDC), silicone free. Connection as PP fusion spigot ends. Seat-sealing PTFE, sealing EPDM or FPM. Actuator function PO-NC, PO-NO or double-acting PO-DA (actuator type size-dependent). d16–d63 / DN10–DN50, PN10. Catalogue code 38M.
2-way ball valve M1 pneumatic with solenoid valve – PP fusion spigot ends (PO-NC / PO-NO / PO-DA)
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack | Operating principle | Type |
|---|---|---|---|---|---|---|---|---|
| 512996 | EPDM | 16 | 10 | 10 | 1 | PO-NC | MT05-2 | |
| 513003 | FPM | 16 | 10 | 10 | 1 | PO-NC | MT05-2 | |
| 513010 | EPDM | 16 | 10 | 10 | 1 | PO-NO | MT05-2 | |
| 513017 | FPM | 16 | 10 | 10 | 1 | PO-NO | MT05-2 | |
| 513024 | EPDM | 16 | 10 | 10 | 1 | PO-DA | MT05DA | |
| 513031 | FPM | 16 | 10 | 10 | 1 | PO-DA | MT05DA | |
| 512997 | EPDM | 20 | 15 | 10 | 1 | PO-NC | MT05-2 | |
| 513004 | FPM | 20 | 15 | 10 | 1 | PO-NC | MT05-2 | |
| 513011 | EPDM | 20 | 15 | 10 | 1 | PO-NO | MT05-2 | |
| 513018 | FPM | 20 | 15 | 10 | 1 | PO-NO | MT05-2 | |
| 513025 | EPDM | 20 | 15 | 10 | 1 | PO-DA | MT05DA | |
| 513032 | FPM | 20 | 15 | 10 | 1 | PO-DA | MT05DA | |
| 512998 | EPDM | 25 | 20 | 10 | 1 | PO-NC | MT05-2 | |
| 513005 | FPM | 25 | 20 | 10 | 1 | PO-NC | MT05-2 | |
| 513012 | EPDM | 25 | 20 | 10 | 1 | PO-NO | MT05-2 | |
| 513019 | FPM | 25 | 20 | 10 | 1 | PO-NO | MT05-2 | |
| 513026 | EPDM | 25 | 20 | 10 | 1 | PO-DA | MT05DA | |
| 513033 | FPM | 25 | 20 | 10 | 1 | PO-DA | MT05DA | |
| 512999 | EPDM | 32 | 25 | 10 | 1 | PO-NC | MT05-2 | |
| 513006 | FPM | 32 | 25 | 10 | 1 | PO-NC | MT05-2 | |
| 513013 | EPDM | 32 | 25 | 10 | 1 | PO-NO | MT05-2 | |
| 513020 | FPM | 32 | 25 | 10 | 1 | PO-NO | MT05-2 | |
| 513027 | EPDM | 32 | 25 | 10 | 1 | PO-DA | MT05DA | |
| 513034 | FPM | 32 | 25 | 10 | 1 | PO-DA | MT05DA | |
| 513000 | EPDM | 40 | 32 | 10 | 1 | PO-NC | MT15-4 | |
| 513007 | FPM | 40 | 32 | 10 | 1 | PO-NC | MT15-4 | |
| 513014 | EPDM | 40 | 32 | 10 | 1 | PO-NO | MT15-4 | |
| 513021 | FPM | 40 | 32 | 10 | 1 | PO-NO | MT15-4 | |
| 513028 | EPDM | 40 | 32 | 10 | 1 | PO-DA | MT15DA | |
| 513035 | FPM | 40 | 32 | 10 | 1 | PO-DA | MT15DA | |
| 513001 | EPDM | 50 | 40 | 10 | 1 | PO-NC | MT15-4 | |
| 513008 | FPM | 50 | 40 | 10 | 1 | PO-NC | MT15-4 | |
| 513015 | EPDM | 50 | 40 | 10 | 1 | PO-NO | MT15-4 | |
| 513022 | FPM | 50 | 40 | 10 | 1 | PO-NO | MT15-4 | |
| 513029 | EPDM | 50 | 40 | 10 | 1 | PO-DA | MT15DA | |
| 513036 | FPM | 50 | 40 | 10 | 1 | PO-DA | MT15DA | |
| 513002 | EPDM | 63 | 50 | 10 | 1 | PO-NC | MT17-4 | |
| 513009 | FPM | 63 | 50 | 10 | 1 | PO-NC | MT17-4 | |
| 513016 | EPDM | 63 | 50 | 10 | 1 | PO-NO | MT17-4 | |
| 513023 | FPM | 63 | 50 | 10 | 1 | PO-NO | MT17-4 | |
| 513030 | EPDM | 63 | 50 | 10 | 1 | PO-DA | MT15DA | |
| 513037 | FPM | 63 | 50 | 10 | 1 | PO-DA | MT15DA |
Technical drawing & dimensions
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | - |
| 15 | 20 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | 97 |
| 20 | 25 | 53.5 | 51 | 40 | 62 | 5.5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6.5 | 38 | 79.5 | 125 |
| 32 | 40 | 62 | 63.5 | 51 | 84 | 6.5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6.5 | 45 | 105.5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6.5 | 50 | 114 | 165 |
Dimensions in mm · letters as per drawing · valve body dimensions without actuator
