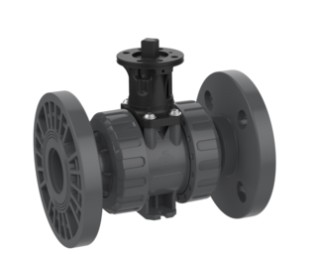

2-way modular industrial ball valve M1 Adapter Set, silicone free – fixed flange DIN-ANSI-JIS (PVC-U)
Description
Modular 2-way ball valve M1 adapter set in PVC-U with fixed flange to DIN-ANSI-JIS (d20–d110), PTFE seat-sealing, EPDM or FPM seals, silicone free, PN16.
Ball Valve 2W M1 DIN-ANSI-JIS (Fixed flange)
- Fixed flange
- seat-sealing: PTFE
- adapter set
- silicone free
- single packed
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack |
|---|---|---|---|---|---|---|
| 210200 | EPDM | 20 | 15 | 16 | 9 | |
| 210206 | FPM | 20 | 15 | 16 | 9 | |
| 210201 | EPDM | 25 | 20 | 16 | 8 | |
| 210207 | FPM | 25 | 20 | 16 | 8 | |
| 210202 | EPDM | 32 | 25 | 16 | 8 | |
| 210208 | FPM | 32 | 25 | 16 | 8 | |
| 210203 | EPDM | 40 | 32 | 16 | 8 | |
| 210209 | FPM | 40 | 32 | 16 | 8 | |
| 210204 | EPDM | 50 | 40 | 16 | 6 | |
| 210210 | FPM | 50 | 40 | 16 | 6 | |
| 210205 | EPDM | 63 | 50 | 16 | 4 | |
| 210211 | FPM | 63 | 50 | 16 | 4 | |
| 210540 | EPDM | 75 | 65 | 16 | 1 | |
| 210543 | FPM | 75 | 65 | 16 | 1 | |
| 210541 | EPDM | 90 | 80 | 16 | 1 | |
| 210544 | FPM | 90 | 80 | 16 | 1 | |
| 210542 | EPDM | 110 | 80 | 16 | 1 | |
| 210545 | FPM | 110 | 80 | 16 | 1 |
Technical drawing & dimensions
| DN | d | G | A | B | C | D | E | F | H | I | t (KM) | t (KS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 3/8 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | - | 16 | 17 |
| 15 | 20 | 1/2 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | 97 | 16.5 | 16.5 |
| 20 | 25 | 3/4 | 53.5 | 51 | 40 | 62 | 5.5 | 36 | 77 | 105 | 19.5 | 19.5 |
| 25 | 32 | 1 | 54 | 51 | 43 | 70 | 6.5 | 38 | 79.5 | 125 | 23 | 23 |
| 32 | 40 | 1 1/4 | 62 | 63.5 | 51 | 84 | 6.5 | 40 | 98 | 140 | 26.5 | 26.5 |
| 40 | 50 | 1 1/2 | 78 | 72 | 56 | 101 | 6.5 | 45 | 105.5 | 150 | 31.5 | 31.5 |
| 50 | 63 | 2 | 87 | 84 | 64 | 115 | 6.5 | 50 | 114 | 165 | 38.5 | 38.5 |
Dimensions in mm · letters as per drawing · t = insertion depth (KM = solvent socket, KS = spigot) · G = thread size
