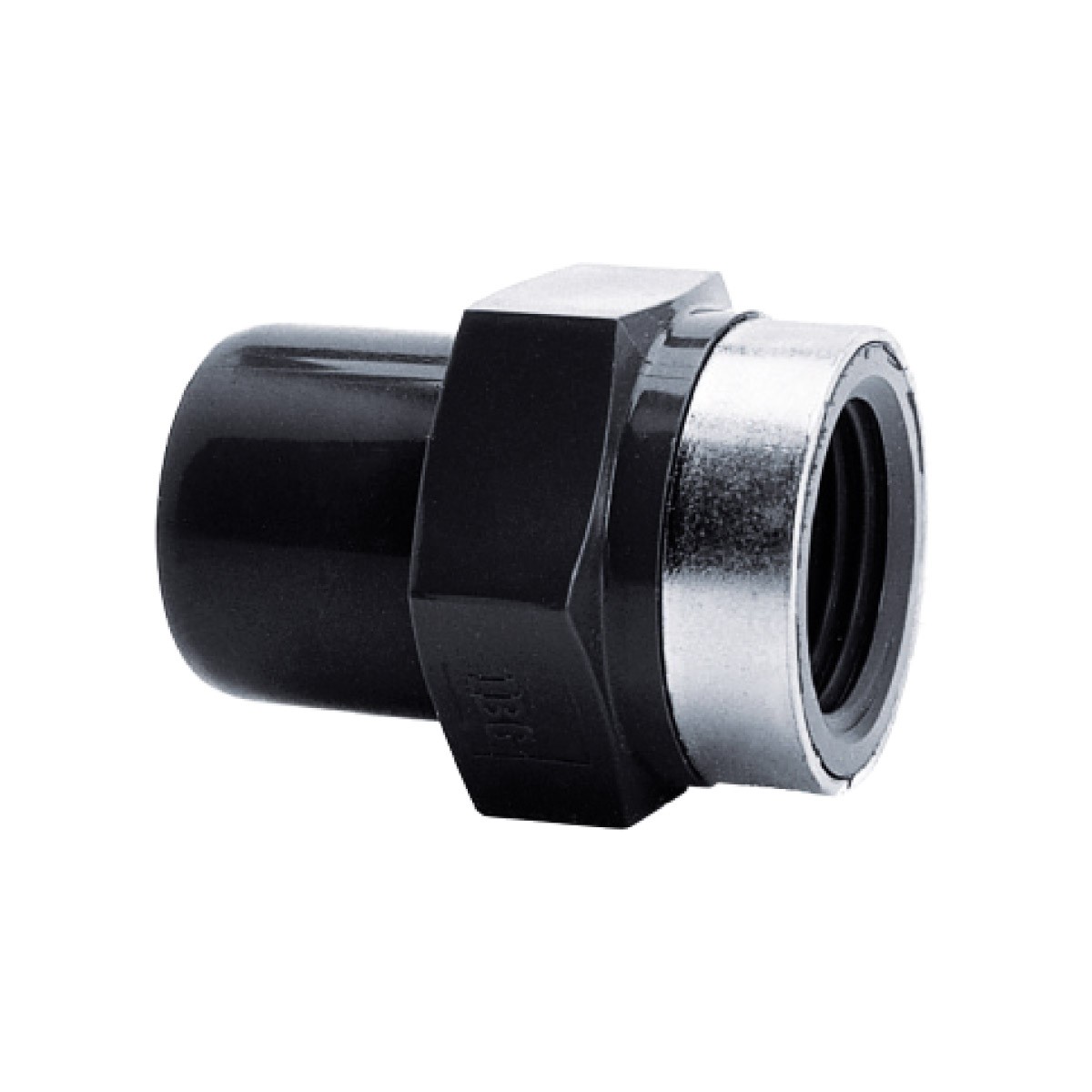

Name: IBG® transition piece, solvent socket/spigot – female thread, reinforced, PN10, grey
Brand: Peraplas

Description

IBG® transition piece made of PVC-U (grey), solvent socket/spigot to female thread, reinforced design, PN10. Sizes d1-d-G 16/12-3/8" to 63/50-2".

Art. No. (Peraplas)	KLN No.	d1-d-G	PN	DN	Z	Z1	I	D	Weight (kg)	Pack
71250	51513658	16/12 – 3/8"	10	10 – 8	12	15,5	33	24	0.02	50.00
71251	51513659	20/16 – 1/2"	10	15 – 10	15	20	34	28	0.02	100.00
71252	51513660	25/20 – 3/4"	10	20 – 15	16,3	21,9	38	34,6	0.03	100.00
71253	51513661	32/25 – 1"	10	25 – 20	19,1	26,4	45,5	44	0.10	50.00
71254	51513662	40/32 – 1 1/4"	10	32 – 25	21,4	31,4	54	55	0.08	40.00
71255	51513663	50/40 – 1 1/2"	10	40 – 32	21,4	32,2	59,5	63	0.12	30.00
70035	51512917	63/50 – 2"	10	50 – 40	25,7	39,2	71,5	77,5	0.50	30.00

d1-d-G	DN	Z	Z1	l	D	Weight [kg]
16/12 - 3/8“	10 - 8	12	15.5	33	24	0.02
20/16 - 1/2“	15 - 10	15	20	34	28	0.02
25/20 - 3/4“	20 - 15	16.3	21.9	38	34.6	0.03
32/25 - 1“	25 - 20	19.1	26.4	45.5	44	0.10
40/32 - 1 1/4“	32 - 25	21.4	31.4	54	55	0.08
50/40 - 1 1/2“	40 - 32	21.4	32.2	59.5	63	0.12
63/50 - 2“	50 - 40	25.7	39.2	71.5	77.5	0.50

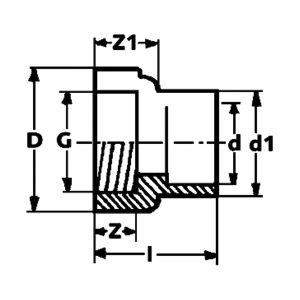

Dimensions in mm · weight in kg · letters as per drawing
