IBG® transition union, PVC/GTW galvanized, solvent socket – male thread, PN16
Description

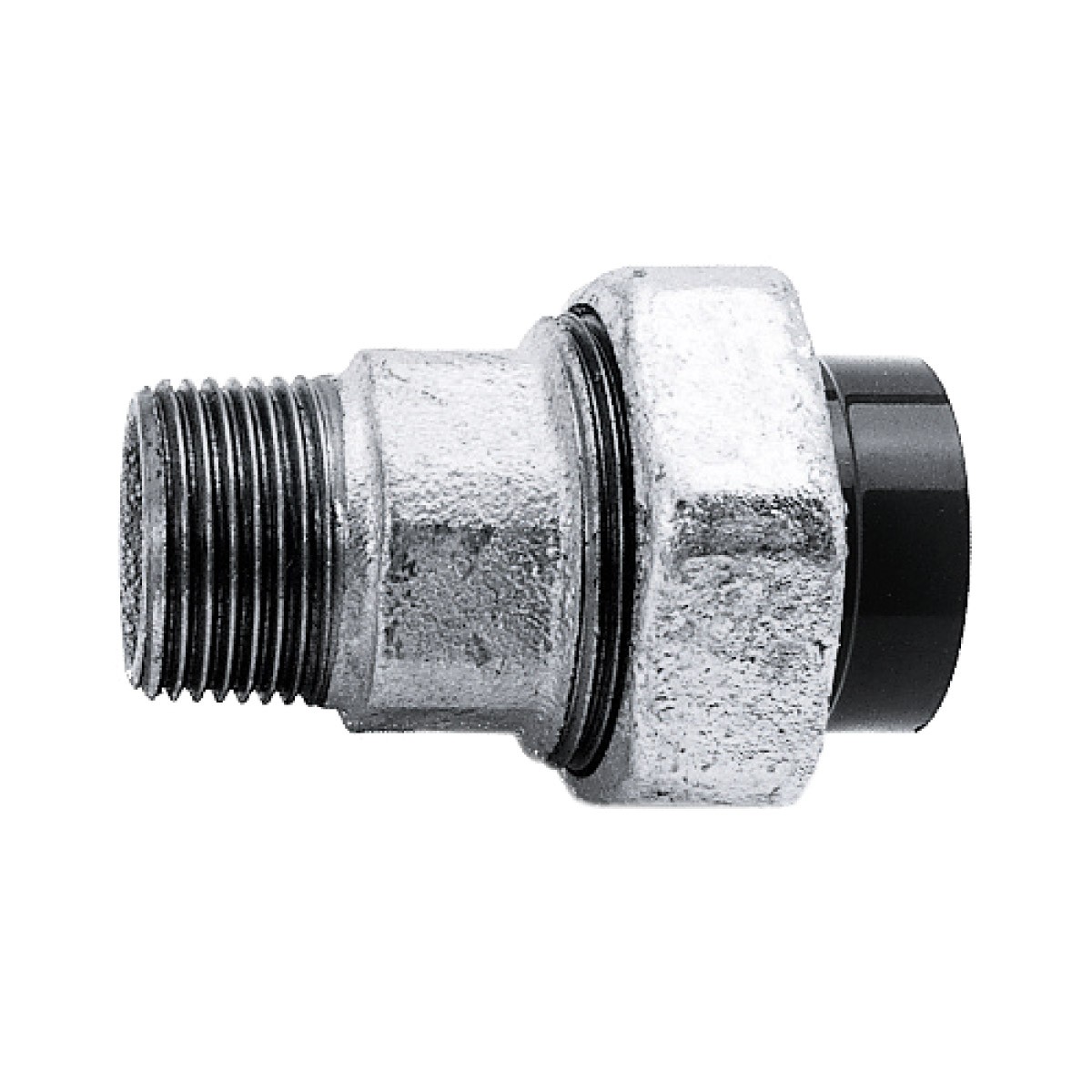

IBG® transition union PVC-U / malleable cast iron (GTW) galvanized, solvent socket to male thread, PN16. Sizes d-G 20-1/2" to 63-2".
IBG® transition union, PVC/GTW galvanized, solvent socket – male thread, PN16
- Material: PVC-U grey / malleable cast iron (GTW) galvanized
- Design: solvent socket – male thread
- Pressure rating: PN16
- Sizes d-G 20-1/2" to 63-2"
| Art. No. (Peraplas) | KLN No. | d-G | PN | DN | G1 | h | I | z | S1 | S2 | Weight (kg) | Pack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71174 | 51513583 | 20 – 1/2" | 16 | 15 | 1" | 40 | 19 | 5 | 37 | 23 | 0.15 | 10.00 |
| 71175 | 00880011 | 25 – 3/4" | 16 | 20 | 1 1/4" | 40 | 22 | 6 | 46 | 27 | 0.29 | 10.00 |
| 71176 | 00880013 | 32 – 1" | 16 | 25 | 1 1/2" | 50 | 25 | 6 | 52 | 38 | 0.33 | 10.00 |
| 71177 | 51513586 | 40 – 1 1/4" | 16 | 32 | 2" | 50 | 29 | 7 | 64 | 44 | 0.66 | 10.00 |
| 71178 | 00880014 | 50 – 1 1/2" | 16 | 40 | 2 1/4" | 65 | 34 | 7 | 72 | 53 | 0.72 | 10.00 |
| 71179 | 00880015 | 63 – 2" | 16 | 50 | 2 3/4" | 61 | 41 | 8 | 89 | 62 | 1.19 | 10.00 |
Technical drawing & dimensions
| d-G | DN | G1 | h | l | z | S1 | S2 | Weight [kg] |
|---|---|---|---|---|---|---|---|---|
| 20 - 1/2“ | 15 | 1 " | 40 | 19 | 5 | 37 | 23 | 0.15 |
| 25 - 3/4“ | 20 | 1 1/4" | 40 | 22 | 6 | 46 | 27 | 0.29 |
| 32 - 1“ | 25 | 11/2" | 50 | 25 | 6 | 52 | 38 | 0.33 |
| 40 - 1 1/4“ | 32 | 2" | 50 | 29 | 7 | 64 | 44 | 0.66 |
| 50 - 1 1/2“ | 40 | 2 1/4" | 65 | 34 | 7 | 72 | 53 | 0.72 |
| 63 - 2“ | 50 | 2 3/4" | 61 | 41 | 8 | 89 | 62 | 1.19 |
Dimensions in mm · weight in kg · letters as per drawing
