Wafer Check Valve K6 (PVC-U)
Description
K6 wafer check valve made of PVC-U (grey) for wafer-style installation between flanges (DIN/ANSI), DN40 to DN350, EPDM or FPM seal, MOP up to 10 bar. Conical sealing face and back-flushed, cylindrically mounted disc shaft for high loads; optionally without spring or spring-loaded (operating temperature up to 60 °C, spring material 1.4401/AISI 316).
Wafer Check Valve K6
- Operating temperature up to 60 °C
- Leak-tight from a back pressure of max. 0.3 bar
- Conical sealing face for maximum stress and long service life
- Back-flushed shaft to prevent deposits
- Cylindrically mounted disc shaft for optimal force transmission
- Bolt centrings for DIN2501 PN10 and ANSI class150
- Mounting aid with defined predetermined breaking point for easy removal
- No outlet aids required (optimized disc opening, improved KV values)
- Installation possible horizontally and vertically
- Very high corrosion resistance
- Spring material 1.4401/AISI 316
| Art. No. (Peraplas) | KLN No. | Version | Product | Weight (kg) | Pack |
|---|---|---|---|---|---|
| 129078 | 51511595 | Without spring | Check valve K6 DN40 PVC grey flange connection 50 – 1 1/2“ DIN/ANSI MOP 10 bar EPDM | 0.21 | 1.00 |
| 129089 | 51511606 | Without spring | Check valve K6 DN40 PVC grey flange connection 50 – 1 1/2“ DIN/ANSI MOP 10 bar FPM | 0.12 | 1.00 |
| 129079 | 51511596 | Without spring | Check valve K6 DN50 PVC grey flange connection d63 – 2“ DIN/ANSI MOP 10 bar EPDM | 0.18 | 1.00 |
| 129090 | 51511607 | Without spring | Check valve K6 DN50 PVC grey flange connection d63 – 2“ DIN/ANSI MOP 10 bar FPM | 0.19 | 1.00 |
| 129080 | 51511597 | Without spring | Check valve K6 DN65 PVC grey flange connection 75 – 2 1/2“ DIN/ANSI MOP 10 bar EPDM | 0.25 | 1.00 |
| 129091 | 51511608 | Without spring | Check valve K6 DN65 PVC grey flange connection 75 – 2 1/2“ DIN/ANSI MOP 10 bar FPM | 0.25 | 1.00 |
| 129081 | 51511598 | Without spring | Check valve K6 DN80 PVC grey flange connection 90 – 3“ DIN/ANSI MOP 10 bar EPDM | 0.33 | 1.00 |
| 129092 | 51511609 | Without spring | Check valve K6 DN80 PVC grey flange connection 90 – 3“ DIN/ANSI MOP 10 bar FPM | 0.33 | 1.00 |
| 129082 | 51511599 | Without spring | Check valve K6 DN100 PVC grey flange connection 110 – 4“ DIN/ANSI MOP 10 bar EPDM | 0.56 | 1.00 |
| 129093 | 51511610 | Without spring | Check valve K6 DN100 PVC grey flange connection 110 – 4“ DIN/ANSI MOP 10 bar FPM | 0.58 | 1.00 |
| 129083 | 51511600 | Without spring | Check valve K6 DN125 PVC grey flange connection 140 – 5“ DIN/ANSI MOP 10 bar EPDM | 0.70 | 1.00 |
| 129094 | 51511611 | Without spring | Check valve K6 DN125 PVC grey flange connection 140 – 5“ DIN/ANSI MOP 10 bar FPM | 0.70 | 1.00 |
| 129084 | 51511601 | Without spring | Check valve K6 DN150 PVC grey flange connection 160 – 6“ DIN/ANSI MOP 10 bar EPDM | 1.37 | 1.00 |
| 129095 | 51511612 | Without spring | Check valve K6 DN150 PVC grey flange connection 160 – 6“ DIN/ANSI MOP 10 bar FPM | 1.07 | 1.00 |
| 129085 | 51511602 | Without spring | Check valve K6 DN200 PVC grey flange connection 225 – 8“ DIN/ANSI MOP 10 bar EPDM | 2.55 | 1.00 |
| 129096 | 51511613 | Without spring | Check valve K6 DN200 PVC grey flange connection 225 – 8“ DIN/ANSI MOP 10 bar FPM | 2.55 | 1.00 |
| 129087 | 51511604 | Without spring | Check valve K6 DN300 PVC grey flange connection 315 – 12“ DIN/ANSI MOP 8 bar EPDM | 6.28 | 1.00 |
| 129098 | 51511614 | Without spring | Check valve K6 DN300 PVC grey flange connection 315 – 12“ DIN/ANSI MOP 8 bar FPM | 6.38 | 1.00 |
| 129088 | 51511605 | Without spring | Check valve K6 DN350 PVC grey flange connection 355 – 14“ DIN/ANSI MOP 6 bar EPDM | 9.11 | 1.00 |
| 129099 | 51511615 | Without spring | Check valve K6 DN350 PVC grey flange connection 355 – 14“ DIN/ANSI MOP 6 bar FPM | 9.10 | 1.00 |
| 129100 | 51511616 | Spring-loaded | Check valve K6 spring-loaded DN40 PVC grey flange connection 50 – 1 1/2“ DIN/ANSI MOP 10 bar EPDM | 0.12 | 1.00 |
| 129111 | 51511626 | Spring-loaded | Check valve K6 spring-loaded DN40 PVC grey flange connection 50 – 1 1/2“ DIN/ANSI MOP 10 bar FPM | 0.12 | 1.00 |
| 129101 | 51511617 | Spring-loaded | Check valve K6 spring-loaded DN50 PVC grey flange connection d63 – 2“ DIN/ANSI MOP 10 bar EPDM | 0.18 | 1.00 |
| 129112 | 51511627 | Spring-loaded | Check valve K6 spring-loaded DN50 PVC grey flange connection d63 – 2“ DIN/ANSI MOP 10 bar FPM | 0.19 | 1.00 |
| 129102 | 51511618 | Spring-loaded | Check valve K6 spring-loaded DN65 PVC grey flange connection 75 – 2 1/2“ DIN/ANSI MOP 10 bar EPDM | 0.28 | 1.00 |
| 129113 | 51511628 | Spring-loaded | Check valve K6 spring-loaded DN65 PVC grey flange connection 75 – 2 1/2“ DIN/ANSI MOP 10 bar FPM | 0.28 | 1.00 |
| 129103 | 51511619 | Spring-loaded | Check valve K6 spring-loaded DN80 PVC grey flange connection 90 – 3“ DIN/ANSI MOP 10 bar EPDM | 0.34 | 1.00 |
| 129114 | 51511629 | Spring-loaded | Check valve K6 spring-loaded DN80 PVC grey flange connection 90 – 3“ DIN/ANSI MOP 10 bar FPM | 0.34 | 1.00 |
| 129104 | 51511620 | Spring-loaded | Check valve K6 spring-loaded DN100 PVC grey flange connection 110 – 4“ DIN/ANSI MOP 10 bar EPDM | 0.56 | 1.00 |
| 129115 | 51511630 | Spring-loaded | Check valve K6 spring-loaded DN100 PVC grey flange connection 110 – 4“ DIN/ANSI MOP 10 bar FPM | 0.58 | 1.00 |
| 129105 | 51511621 | Spring-loaded | Check valve K6 spring-loaded DN125 PVC grey flange connection 140 – 5“ DIN/ANSI MOP 10 bar EPDM | 0.75 | 1.00 |
| 129116 | 51511631 | Spring-loaded | Check valve K6 spring-loaded DN125 PVC grey flange connection 140 – 5“ DIN/ANSI MOP 10 bar FPM | 0.75 | 1.00 |
| 129106 | 51511622 | Spring-loaded | Check valve K6 spring-loaded DN150 PVC grey flange connection 160 – 6“ DIN/ANSI MOP 10 bar EPDM | 1.38 | 1.00 |
| 129117 | 51511632 | Spring-loaded | Check valve K6 spring-loaded DN150 PVC grey flange connection 160 – 6“ DIN/ANSI MOP 10 bar FPM | 1.38 | 1.00 |
| 129107 | 51511623 | Spring-loaded | Check valve K6 spring-loaded DN200 PVC grey flange connection 225 – 8“ DIN/ANSI MOP 10 bar EPDM | 2.59 | 1.00 |
| 129118 | 51511633 | Spring-loaded | Check valve K6 spring-loaded DN200 PVC grey flange connection 225 – 8“ DIN/ANSI MOP 10 bar FPM | 2.59 | 1.00 |
| 129109 | 51511624 | Spring-loaded | Check valve K6 spring-loaded DN300 PVC grey flange connection 315 – 12“ DIN/ANSI MOP 8 bar EPDM | 6.35 | 1.00 |
| 129120 | 51511634 | Spring-loaded | Check valve K6 spring-loaded DN300 PVC grey flange connection 315 – 12“ DIN/ANSI MOP 8 bar FPM | 6.44 | 1.00 |
| 129110 | 51511625 | Spring-loaded | Check valve K6 spring-loaded DN350 PVC grey flange connection 355 – 14“ DIN/ANSI MOP 6 bar EPDM | 9.18 | 1.00 |

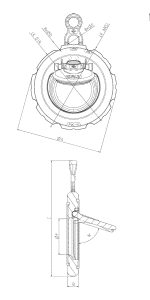

Technical drawing & dimensions
| DN | d | ØA | B | C | LK DIN | ØD | LK ANSI | ØE | ØF |
|---|---|---|---|---|---|---|---|---|---|
| 40 | 50 | 95 | 16 | 141.8 | 110 | 18 | 98.5 | 15.5 | 23.5 |
| 50 | 63 | 109 | 18 | 159.5 | 125 | 18 | 120.65 | 19 | 33 |
| 65 | 75 | 130 | 20 | 185 | 145 | 18 | 139.7 | 19 | 42 |
| 80 | 90 | 146 | 20 | 200.4 | 160 | 18 | 152.4 | 19 | 53 |
| 100 | 110 | 175 | 23 | 237.2 | 180 | 18 | 190.5 | 19 | 73 |
| 125 | 140 | 198 | 25 | 262.3 | 210 | 18 | 215.9 | 22.2 | 93 |
| 150 | 160 | 223 | 30 | 288.8 | 240 | 22 | 241.3 | 22.2 | 110 |
| 200 | 225 | 280 | 34 | 348.3 | 295 | 22 | 298.45 | 22.2 | 150 |
Dimensions in mm · letters as per drawing
