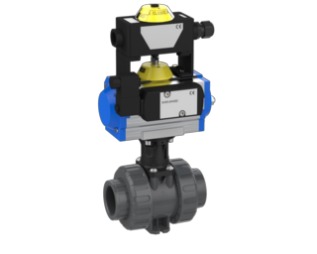

2-weg modulaire industriële kogelkraan M1 pneumatisch met standterugmelding en magneetklep, siliconenvrij – draadmof BSP (PVC-U)
Beschrijving
2-weg modulaire industriële kogelkraan M1 van PVC-U, pneumatisch aangedreven met standterugmelding (schakelaar pi 250 V) en geïntegreerde magneetklep (5/2-3/2-weg, 24 V DC), siliconenvrij, zittingafdichting PTFE, aansluiting draadmof R (BSP) (3/8" – 2" / DN10–DN50), PN16, met de aandrijffuncties PO-NC, PO-NO of PO-DA en naar keuze EPDM- of FPM-afdichting.
Kogelkraan 2W M1 BSP – draadmof R
- Aansluiting: draadmof R (BSP)
- Zittingafdichting: PTFE
- siliconenvrij
- Aandrijving: pneumatisch (M1) met standterugmelding en magneetklep
- Standterugmelding: schakelaar pi 250 V
- Magneetklep: 5/2-3/2-weg, 24 V DC
- Aandrijffunctie: PO-NC, PO-NO of PO-DA
- Afdichtingsmateriaal: EPDM of FPM
| Art.nr. (Praher) | KLN-nr. | Afdichting | d | DN | PN | VE | Typ | Aansturing |
|---|---|---|---|---|---|---|---|---|
| 512116 | EPDM | 3/8" | 10 | 16 | 1 | MT05-2 | PO-NC | |
| 512117 | EPDM | 1/2" | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 512118 | EPDM | 3/4" | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 512119 | EPDM | 1" | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 512120 | EPDM | 1 1/4" | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 512121 | EPDM | 1 1/2" | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 512122 | EPDM | 2" | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 512123 | FPM | 3/8" | 10 | 16 | 1 | MT05-2 | PO-NC | |
| 512124 | FPM | 1/2" | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 512125 | FPM | 3/4" | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 512126 | FPM | 1" | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 512127 | FPM | 1 1/4" | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 512128 | FPM | 1 1/2" | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 512129 | FPM | 2" | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 512130 | EPDM | 3/8" | 10 | 16 | 1 | MT05-2 | PO-NO | |
| 512131 | EPDM | 1/2" | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 512132 | EPDM | 3/4" | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 512133 | EPDM | 1" | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 512134 | EPDM | 1 1/4" | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 512135 | EPDM | 1 1/2" | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 512136 | EPDM | 2" | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 512137 | FPM | 3/8" | 10 | 16 | 1 | MT05-2 | PO-NO | |
| 512138 | FPM | 1/2" | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 512139 | FPM | 3/4" | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 512140 | FPM | 1" | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 512141 | FPM | 1 1/4" | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 512142 | FPM | 1 1/2" | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 512143 | FPM | 2" | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 512144 | EPDM | 3/8" | 10 | 16 | 1 | MT05DA | PO-DA | |
| 512145 | EPDM | 1/2" | 15 | 16 | 1 | MT05DA | PO-DA | |
| 512146 | EPDM | 3/4" | 20 | 16 | 1 | MT05DA | PO-DA | |
| 512147 | EPDM | 1" | 25 | 16 | 1 | MT05DA | PO-DA | |
| 512148 | EPDM | 1 1/4" | 32 | 16 | 1 | MT15DA | PO-DA | |
| 512149 | EPDM | 1 1/2" | 40 | 16 | 1 | MT15DA | PO-DA | |
| 512150 | EPDM | 2" | 50 | 16 | 1 | MT15DA | PO-DA | |
| 512151 | FPM | 3/8" | 10 | 16 | 1 | MT05DA | PO-DA | |
| 512152 | FPM | 1/2" | 15 | 16 | 1 | MT05DA | PO-DA | |
| 512153 | FPM | 3/4" | 20 | 16 | 1 | MT05DA | PO-DA | |
| 512154 | FPM | 1" | 25 | 16 | 1 | MT05DA | PO-DA | |
| 512155 | FPM | 1 1/4" | 32 | 16 | 1 | MT15DA | PO-DA | |
| 512156 | FPM | 1 1/2" | 40 | 16 | 1 | MT15DA | PO-DA | |
| 512157 | FPM | 2" | 50 | 16 | 1 | MT15DA | PO-DA |
Technische tekening & afmetingen
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39,5 | 33 | 55,5 | 5,5 | 34 | 70,5 | - |
| 15 | 20 | 45 | 39,5 | 33 | 55,5 | 5,5 | 34 | 70,5 | 97 |
| 20 | 25 | 53,5 | 51 | 40 | 62 | 5,5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6,5 | 38 | 79,5 | 125 |
| 32 | 40 | 62 | 63,5 | 51 | 84 | 6,5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6,5 | 45 | 105,5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6,5 | 50 | 114 | 165 |
Maten in mm · letters volgens tekening · Maße des Ventilkörpers ohne Antrieb
