2-weg modulaire industriële kogelkraan M1 pneumatisch met standterugmelding en magneetventiel, siliconenvrij – PVCu lijmmof metrisch (PVC-U)
Beschrijving

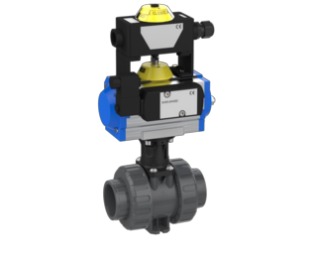

2-weg modulaire industriële kogelkraan M1 uit PVC-U, pneumatisch aangedreven met standterugmelding (schakelaar pi 250 V) en geïntegreerd magneetventiel (5/2-3/2-weg, 24 V DC), siliconenvrij, zittingafdichting PTFE, aansluiting PVCu lijmmof (metrisch) (d16–d63 / DN10–DN50), PN16, met de aandrijffuncties PO-NC, PO-NO of PO-DA en naar keuze EPDM- of FPM-afdichting.
Kogelkraan 2W M1 metrisch – PVCu lijmmof
- Aansluiting: PVCu lijmmof (metrisch)
- Zittingafdichting: PTFE
- siliconenvrij
- Aandrijving: pneumatisch (M1) met standterugmelding en magneetventiel
- Standterugmelding: schakelaar pi 250 V
- Magneetventiel: 5/2-3/2-weg, 24 V DC
- Aandrijffunctie: PO-NC, PO-NO of PO-DA
- Afdichtingsmateriaal: EPDM of FPM
| Art.nr. (Praher) | KLN-nr. | Afdichting | d | DN | PN | VE | Typ | Aansturing |
|---|---|---|---|---|---|---|---|---|
| 511990 | EPDM | 16 | 10 | 16 | 1 | MT05-2 | PO-NC | |
| 511997 | FPM | 16 | 10 | 16 | 1 | MT05-2 | PO-NC | |
| 512004 | EPDM | 16 | 10 | 16 | 1 | MT05-2 | PO-NO | |
| 512011 | FPM | 16 | 10 | 16 | 1 | MT05-2 | PO-NO | |
| 512018 | EPDM | 16 | 10 | 16 | 1 | MT05DA | PO-DA | |
| 512025 | FPM | 16 | 10 | 16 | 1 | MT05DA | PO-DA | |
| 511991 | EPDM | 20 | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 511998 | FPM | 20 | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 512005 | EPDM | 20 | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 512012 | FPM | 20 | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 512019 | EPDM | 20 | 15 | 16 | 1 | MT05DA | PO-DA | |
| 512026 | FPM | 20 | 15 | 16 | 1 | MT05DA | PO-DA | |
| 511992 | EPDM | 25 | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 511999 | FPM | 25 | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 512006 | EPDM | 25 | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 512013 | FPM | 25 | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 512020 | EPDM | 25 | 20 | 16 | 1 | MT05DA | PO-DA | |
| 512027 | FPM | 25 | 20 | 16 | 1 | MT05DA | PO-DA | |
| 511993 | EPDM | 32 | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 512000 | FPM | 32 | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 512007 | EPDM | 32 | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 512014 | FPM | 32 | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 512021 | EPDM | 32 | 25 | 16 | 1 | MT05DA | PO-DA | |
| 512028 | FPM | 32 | 25 | 16 | 1 | MT05DA | PO-DA | |
| 511994 | EPDM | 40 | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 512001 | FPM | 40 | 32 | 16 | 1 | MT15-4 | PO-NC | |
| 512008 | EPDM | 40 | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 512015 | FPM | 40 | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 512022 | EPDM | 40 | 32 | 16 | 1 | MT15DA | PO-DA | |
| 512029 | FPM | 40 | 32 | 16 | 1 | MT15DA | PO-DA | |
| 511995 | EPDM | 50 | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 512002 | FPM | 50 | 40 | 16 | 1 | MT15-4 | PO-NC | |
| 512009 | EPDM | 50 | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 512016 | FPM | 50 | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 512023 | EPDM | 50 | 40 | 16 | 1 | MT15DA | PO-DA | |
| 512030 | FPM | 50 | 40 | 16 | 1 | MT15DA | PO-DA | |
| 511996 | EPDM | 63 | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 512003 | FPM | 63 | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 512010 | EPDM | 63 | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 512017 | FPM | 63 | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 512024 | EPDM | 63 | 50 | 16 | 1 | MT15DA | PO-DA | |
| 512031 | FPM | 63 | 50 | 16 | 1 | MT15DA | PO-DA |
Technische tekening & afmetingen
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39,5 | 33 | 55,5 | 5,5 | 34 | 70,5 | - |
| 15 | 20 | 45 | 39,5 | 33 | 55,5 | 5,5 | 34 | 70,5 | 97 |
| 20 | 25 | 53,5 | 51 | 40 | 62 | 5,5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6,5 | 38 | 79,5 | 125 |
| 32 | 40 | 62 | 63,5 | 51 | 84 | 6,5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6,5 | 45 | 105,5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6,5 | 50 | 114 | 165 |
Maten in mm · letters volgens tekening · Maße des Ventilkörpers ohne Antrieb
