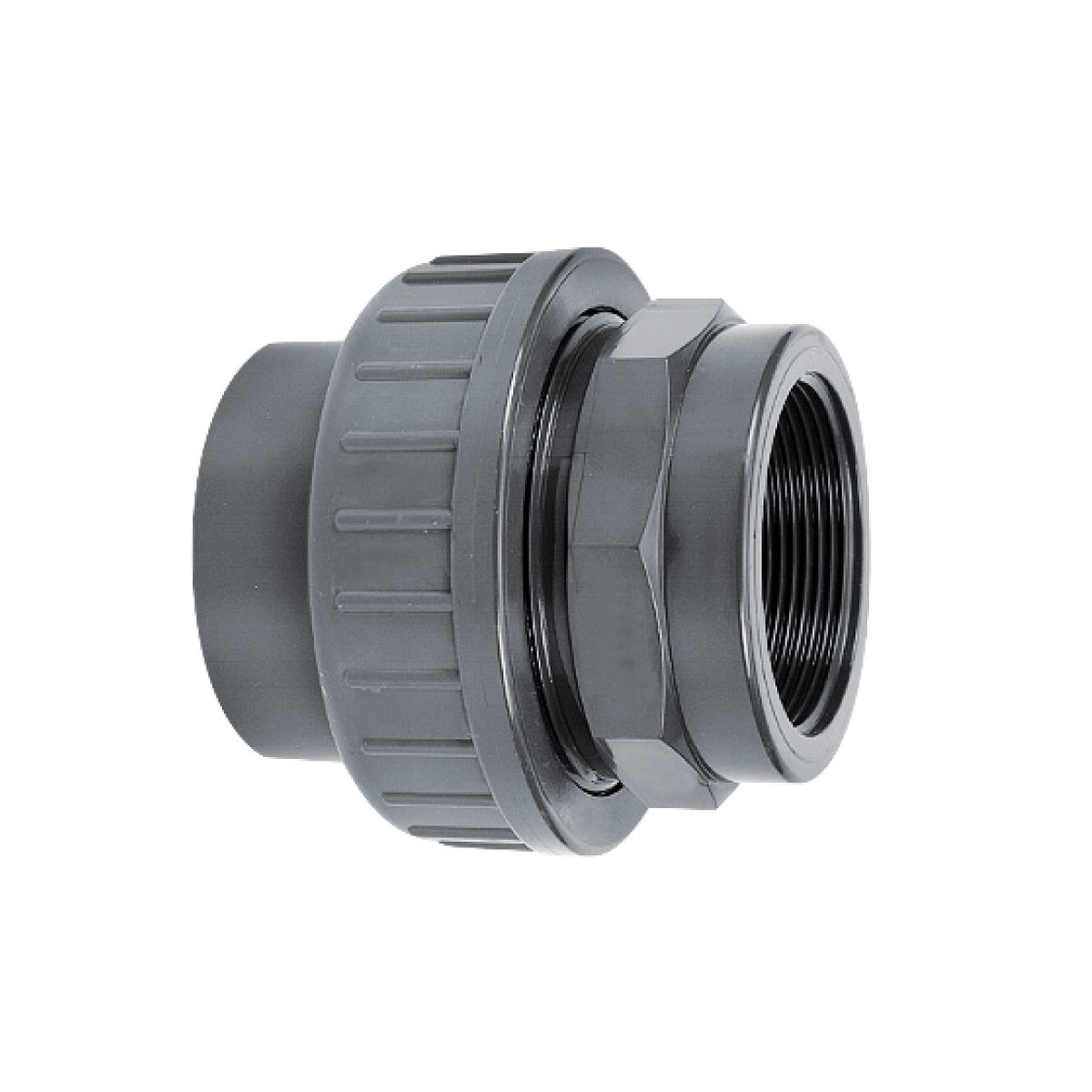

Złączka metryczna-BSP, kielich klejony-gwint wewnętrzny (PVC-U)
Opis
Złączka PVC-U metryczna-BSP (kielich klejony-gwint wewnętrzny) serii IBG, wymiary 12-1/4" do 63-2".
Złączka metryczna-BSP, kielich klejony-gwint wewnętrzny
- Kielich klejony-gwint wewnętrzny
- Materiał: PVC-U
| Nr art. (Praher) | Nr KLN | d | PN | VE |
|---|---|---|---|---|
| 72601 | 00000841 | 12-1/4" | 10 | 10 |
| 71214 | 00000843 | 16-3/8" | 10 | 20 |
| 71215 | 51513624 | d20-1/2" | 10 | 60 |
| 71216 | 51513625 | 25-3/4" | 10 | 90 |
| 71217 | 51513626 | 32-1" | 10 | 100 |
| 71218 | 51513627 | 40-1 1/4" | 10 | 60 |
| 71219 | 51513628 | 50-1 1/2" | 10 | 32 |
| 71220 | 51513629 | 63-2" | 10 | 20 |

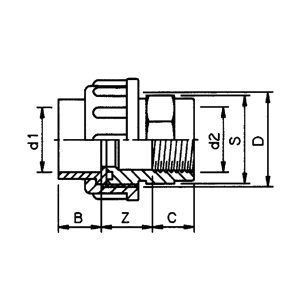

Rysunek techniczny & wymiary
| d | DN | L | G1 | l | l1 | Z | E | Masa [kg] |
|---|---|---|---|---|---|---|---|---|
| 12 - 1/4“ | 6 | 46 | 5/8" | 12 | 24 | 13 | 35 | 0.02 |
| 16 - 3/8“ | 10 | 42 | 3/4" | 18 | 24 | 13 | 37 | 0.03 |
| 20 - 1/2“ | 15 | 46 | 1" | 19 | 26 | 13 | 43 | 0.04 |
| 25 - 3/4“ | 20 | 51 | 11/4" | 22 | 29 | 13 | 53 | 0.06 |
| 32 - 1“ | 25 | 58 | 11/2" | 25 | 33 | 13 | 60 | 0.09 |
| 40 - 11/4“ | 32 | 67 | 2" | 29 | 38 | 15 | 74 | 0.15 |
| 50 - 11/2“ | 40 | 80 | 21/4" | 34 | 45 | 17 | 83 | 0.21 |
| 63 - 2“ | 50 | 98 | 23/4" | 41 | 56 | 21 | 103 | 0.39 |
Wymiary w mm · masa w kg · litery zgodnie z rysunkiem
