2-way modular industrial ball valve M1 electric with positioner, silicone free – PVCu solvent socket ends metric (PVC-U)
Description

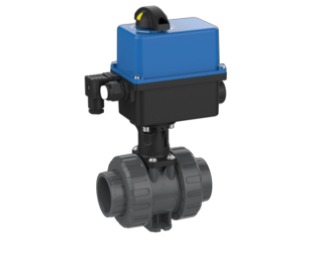

2-way modular industrial ball valve M1 in PVC-U with electric actuator and position feedback (posi), silicone free, PTFE seat, connection PVCu solvent socket ends (metric) (d16–d63 / DN10–DN50), PN16, in the voltage variants 15-30VAC and 90-240VAC and with either EPDM or FPM seal.
Ball Valve 2W M1 metric – PVCu solvent socket ends
- Connection: PVCu solvent socket ends (metric)
- seat-sealing: PTFE
- EO
- posi (position feedback)
- silicone free
- actuator: electric with positioner
- voltage: 15-30VAC or 90-240VAC
- seal material: EPDM or FPM
| Art. No. (Praher) | KLN No. | Seal | d | DN | PN | Pack | Type | Voltage |
|---|---|---|---|---|---|---|---|---|
| 510446 | EPDM | 16 | 10 | 16 | 1 | ER20 | 15-30VAC | |
| 510460 | FPM | 16 | 10 | 16 | 1 | ER20 | 15-30VAC | |
| 510453 | EPDM | 16 | 10 | 16 | 1 | ER20 | 90-240VAC | |
| 510467 | FPM | 16 | 10 | 16 | 1 | ER20 | 90-240VAC | |
| 510447 | EPDM | 20 | 15 | 16 | 1 | ER20 | 15-30VAC | |
| 510461 | FPM | 20 | 15 | 16 | 1 | ER20 | 15-30VAC | |
| 510454 | EPDM | 20 | 15 | 16 | 1 | ER20 | 90-240VAC | |
| 510468 | FPM | 20 | 15 | 16 | 1 | ER20 | 90-240VAC | |
| 510448 | EPDM | 25 | 20 | 16 | 1 | ER20 | 15-30VAC | |
| 510462 | FPM | 25 | 20 | 16 | 1 | ER20 | 15-30VAC | |
| 510455 | EPDM | 25 | 20 | 16 | 1 | ER20 | 90-240VAC | |
| 510469 | FPM | 25 | 20 | 16 | 1 | ER20 | 90-240VAC | |
| 510449 | EPDM | 32 | 25 | 16 | 1 | ER20 | 15-30VAC | |
| 510463 | FPM | 32 | 25 | 16 | 1 | ER20 | 15-30VAC | |
| 510456 | EPDM | 32 | 25 | 16 | 1 | ER20 | 90-240VAC | |
| 510470 | FPM | 32 | 25 | 16 | 1 | ER20 | 90-240VAC | |
| 510450 | EPDM | 40 | 32 | 16 | 1 | ER20 | 15-30VAC | |
| 510464 | FPM | 40 | 32 | 16 | 1 | ER20 | 15-30VAC | |
| 510457 | EPDM | 40 | 32 | 16 | 1 | ER20 | 90-240VAC | |
| 510471 | FPM | 40 | 32 | 16 | 1 | ER20 | 90-240VAC | |
| 510451 | EPDM | 50 | 40 | 16 | 1 | ER20 | 15-30VAC | |
| 510465 | FPM | 50 | 40 | 16 | 1 | ER20 | 15-30VAC | |
| 510458 | EPDM | 50 | 40 | 16 | 1 | ER20 | 90-240VAC | |
| 510472 | 51512871 | FPM | 50 | 40 | 16 | 1 | ER20 | 90-240VAC |
| 510452 | EPDM | 63 | 50 | 16 | 1 | ER20 | 15-30VAC | |
| 510466 | FPM | 63 | 50 | 16 | 1 | ER20 | 15-30VAC | |
| 510459 | EPDM | 63 | 50 | 16 | 1 | ER20 | 90-240VAC | |
| 510473 | 51512872 | FPM | 63 | 50 | 16 | 1 | ER20 | 90-240VAC |
Technical drawing & dimensions
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | - |
| 15 | 20 | 45 | 39.5 | 33 | 55.5 | 5.5 | 34 | 70.5 | 97 |
| 20 | 25 | 53.5 | 51 | 40 | 62 | 5.5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6.5 | 38 | 79.5 | 125 |
| 32 | 40 | 62 | 63.5 | 51 | 84 | 6.5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6.5 | 45 | 105.5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6.5 | 50 | 114 | 165 |
Dimensions in mm · letters as per drawing · valve body dimensions without actuator
