Name: IBG® Screw-in Part for Union
Brand: Peraplas

Description

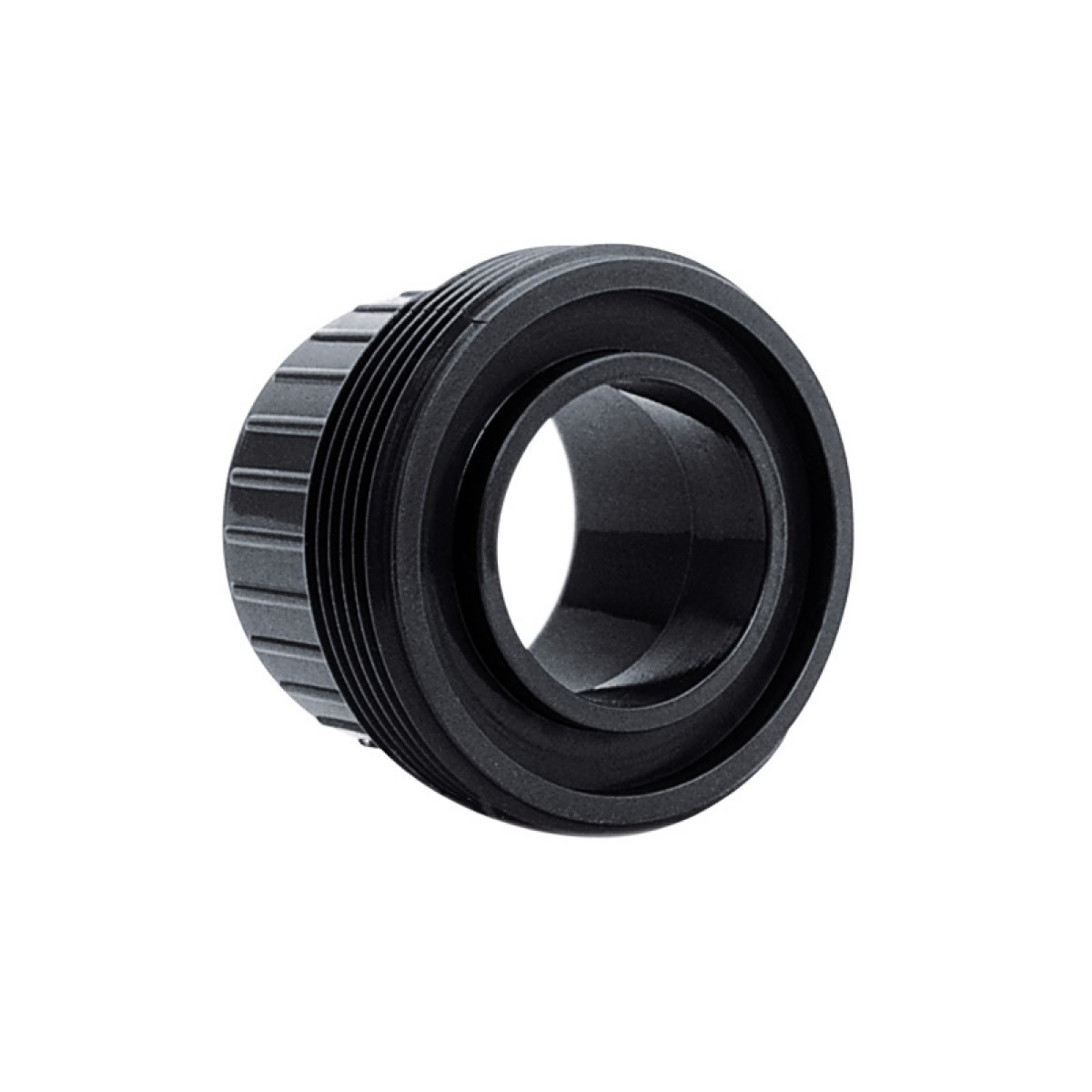

IBG® screw-in part (threaded part) for the IBG® union, with G thread, d16 to d110 (see product table).

Art. No. (Peraplas)	KLN No.	d	PN	DN	G	L	Z	E	Weight (kg)	Pack
71120	51513535	16	16	10	3/4	14	10	22	0.02	50.00
71121	51513536	20	16	15	1	16	15	26	0.01	100.00
71122	51513537	25	16	20	11/4	19	20	33,3	0.02	50.00
70991	51513453	32	16	25	11/2	22	25	41,5	0.03	80.00
71123	51513538	40	16	32	2	28	32	51	0.05	20.00
71124	51513539	50	16	40	21/4	33	40	61	0.06	45.00
71125	51513540	63	16	50	23/4	42	50	76,5	0.13	35.00
71126	51513541	75	10	65	31/2	44	31	96	0.22	10.00
71127	51513542	90	10	80	4	51	35	109	0.39	10.00
71128	51513543	110	10	100	5	61	41	133	0.61	10.00

d	DN	G	L	Z	E	Weight [kg]
16	10	3/4	14	10	22	0.02
20	15	1	16	15	26	0.01
25	20	11/4	19	20	33.3	0.02
32	25	11/2	22	25	41.5	0.03
40	32	2	28	32	51	0.05
50	40	21/4	33	40	61	0.06
63	50	23/4	42	50	76.5	0.13
75	65	31/2	44	31	96	0.22
90	80	4	51	35	109	0.39
110	100	5	61	41	133	0.61

Dimensions in mm · weight in kg · letters as per drawing
