Anbohrschelle Typ B, Innengewinde, verstärkt (PP)
Anbohrschelle Typ B aus PP mit verstärktem Innengewinde, für Rohre d63 bis d110, Abgänge 1/2″ bis 2 1/2″.
Beschreibung

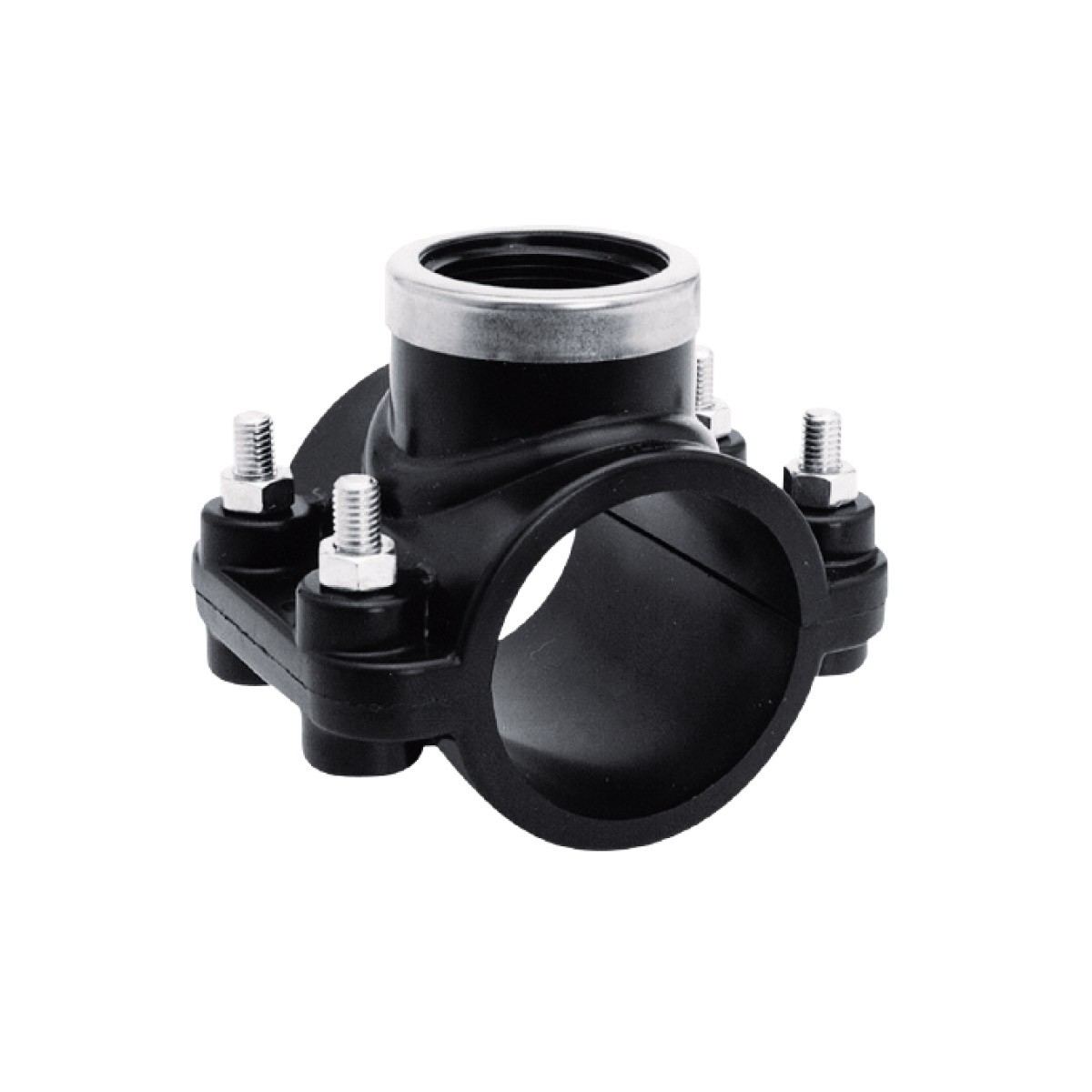

Anbohrschelle Typ B
- Innengewinde
- verstärkt
- Werkstoff: PP
| Art.-Nr. (Praher) | KLN-Nr. | d | Material | VE |
|---|---|---|---|---|
| 71950 | 51513830 | 63-1/2" | PP | 40 |
| 73437 | 51514838 | 63-1" | PP | 40 |
| 73438 | 51514839 | 63-1 1/4" | PP | 30 |
| 73439 | 51514840 | 63-1 1/2" | PP | 30 |
| 73440 | 51514841 | 75-1/2" | PP | 25 |
| 73441 | 51514842 | 75-3/4" | PP | 25 |
| 73442 | 51514843 | 75-1" | PP | 25 |
| 73443 | 51514844 | 75-1 1/4" | PP | 25 |
| 73444 | 51514845 | 75-1 1/2" | PP | 25 |
| 73447 | 51514847 | 90-3/4" | PP | 25 |
| 73448 | 51514848 | 90-1" | PP | 25 |
| 73445 | 51514846 | 90-1/2" | PP | 25 |
| 73449 | 51514849 | 90-1 1/4" | PP | 25 |
| 70915 | 51513405 | 90-1 1/2" | PP | 25 |
| 73451 | 51514850 | 90-2" | PP | 25 |
| 76250 | 110-1/2" | PP | 20 | |
| 73452 | 51514851 | 110-1" | PP | 20 |
| 73453 | 51514852 | 110-1 1/4" | PP | 20 |
| 73454 | 51514853 | 110-1 1/2" | PP | 20 |
| 73455 | 51514854 | 110-2" | PP | 20 |
| 73456 | 51514855 | 110-2 1/2" | PP | 20 |
| 73436 | 51514837 | 63-3/4" | PP | 40 |
Technische Zeichnung & Maße
| d1-d2 | d3 | Z | C | D | E | Gewicht [kg] |
|---|---|---|---|---|---|---|
| 63 - 1/2” | 14 | 39 | 18 | 4 | 4 | 0.29 |
| 90 - 1 1/2” | 18 | 39 | 19 | 4 | 4 | 0.49 |
| 63 - 3/4” | 23 | 39 | 22 | 4 | 4 | 0.30 |
| 63 - 1” | 26 | 39 | 24 | 4 | 4 | 0.30 |
| 63 - 1 1/4” | 33 | 39 | 24 | 4 | 4 | 0.33 |
| 63 - 1 1/2” | 14 | 46 | 18 | 6 | 4 | 0.33 |
| 75 - 1/2” | 18 | 46 | 19 | 6 | 4 | 0.41 |
| 75 - 3/4” | 23 | 46 | 22 | 6 | 4 | 0.42 |
| 75 - 1” | 26 | 46 | 24 | 6 | 4 | 0.42 |
| 75 - 1 1/4” | 33 | 46 | 24 | 6 | 4 | 0.44 |
| 75 - 1 1/2” | 14 | 53 | 18 | 6 | 4 | 0.45 |
| 90 - 1/2” | 18 | 53 | 19 | 6 | 4 | 0.46 |
| 90 - 3/4” | 23 | 53 | 22 | 6 | 4 | 0.46 |
| 90 - 1” | 26 | 53 | 24 | 6 | 4 | 0.47 |
| 90 - 1 1/4” | 33 | 53 | 28 | 6 | 4 | 0.48 |
| 90 - 2” | 42 | 53 | 22 | 6 | 4 | 0.52 |
| 110 - 1” | 23 | 64 | 22 | 6 | 4 | 0.58 |
| 110 - 1 1/4” | 26 | 64 | 24 | 6 | 4 | 0.59 |
| 110 - 1 1/2” | 33 | 64 | 24 | 6 | 4 | 0.60 |
| 110 - 2” | 42 | 64 | 28 | 6 | 4 | 0.63 |
| 110 - 2 1/2” | 60 | 64 | 33 | 6 | 4 | 0.67 |
| 125 - 1” | 23 | 71 | 22 | 6 | 4 | 0.64 |
| 125 - 1 1/4” | 26 | 71 | 24 | 6 | 4 | 0.65 |
| 125 - 1 1/2” | 33 | 71 | 24 | 6 | 4 | 0.66 |
| 125 - 2” | 42 | 71 | 28 | 6 | 4 | 0.70 |
| 125 - 2 1/2” | 60 | 71 | 33 | 6 | 4 | 0.72 |
Maße in mm · Gewicht in kg · Buchstaben gemäß Zeichnung
Downloads & Anleitungen
Zusätzliche Informationen
| Material | PP |
|---|---|
| Einsatzbereich | Industrie & Prozess |
