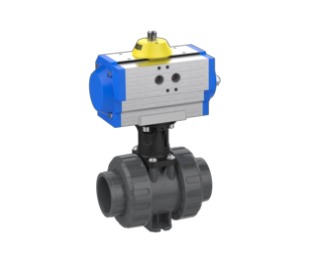

2-Wege-Kugelhahn M1 mit Pneumatikantrieb, silikonfrei, PVCu Klebemuffe metrisch (PVC-U)
2-Wege modularer Industriekugelhahn M1 aus PVC-U mit pneumatischem Schwenkantrieb, silikonfrei, mit PVCu Klebemuffe metrisch (d16–d110), PTFE-Sitzdichtung, Dichtungswerkstoff EPDM oder FPM, PN16. Erhältlich mit einfachwirkendem Antrieb normal geschlossen (PO-NC) oder normal offen (PO-NO) sowie doppeltwirkend (PO-DA); die Antriebsgröße (Typ) richtet sich nach der Nennweite.
Beschreibung
Kugelhahn 2W M1 PVCu Klebemuffe metrisch, Pneumatikantrieb PO-NC/NO/DA
- Anschluss: PVCu Klebemuffe metrisch
- Antrieb: pneumatischer Schwenkantrieb (silikonfrei)
- Ansteuerung: PO-NC (federrückstellend, normal geschlossen), PO-NO (federrückstellend, normal offen), PO-DA (doppeltwirkend)
- Sitzdichtung: PTFE
- Dichtungswerkstoffe: EPDM oder FPM
- einzeln verpackt
| Art.-Nr. (Praher) | KLN-Nr. | Dichtung | d | DN | PN | VE | Typ | Ansteuerung |
|---|---|---|---|---|---|---|---|---|
| 124028A | 51510772 | EPDM | 16 | 10 | 16 | 1 | MT05-2 | PO-NC |
| 124035 | FPM | 16 | 10 | 16 | 1 | MT05-2 | PO-NC | |
| 124042A | 51510781 | EPDM | 16 | 10 | 16 | 1 | MT05-2 | PO-NO |
| 124049 | FPM | 16 | 10 | 16 | 1 | MT05-2 | PO-NO | |
| 124056A | 51510788 | EPDM | 16 | 10 | 16 | 1 | MT05DA | PO-DA |
| 124063 | FPM | 16 | 10 | 16 | 1 | MT05DA | PO-DA | |
| 124029A | 51510773 | EPDM | 20 | 15 | 16 | 1 | MT05-2 | PO-NC |
| 124036 | FPM | 20 | 15 | 16 | 1 | MT05-2 | PO-NC | |
| 124043A | 51510782 | EPDM | 20 | 15 | 16 | 1 | MT05-2 | PO-NO |
| 124050 | FPM | 20 | 15 | 16 | 1 | MT05-2 | PO-NO | |
| 124057A | 51510789 | EPDM | 20 | 15 | 16 | 1 | MT05DA | PO-DA |
| 124064 | FPM | 20 | 15 | 16 | 1 | MT05DA | PO-DA | |
| 124030A | 51510774 | EPDM | 25 | 20 | 16 | 1 | MT05-2 | PO-NC |
| 124037 | FPM | 25 | 20 | 16 | 1 | MT05-2 | PO-NC | |
| 124044A | 51510783 | EPDM | 25 | 20 | 16 | 1 | MT05-2 | PO-NO |
| 124051 | FPM | 25 | 20 | 16 | 1 | MT05-2 | PO-NO | |
| 124058A | 51510790 | EPDM | 25 | 20 | 16 | 1 | MT05DA | PO-DA |
| 124065 | FPM | 25 | 20 | 16 | 1 | MT05DA | PO-DA | |
| 124031A | 51510775 | EPDM | 32 | 25 | 16 | 1 | MT05-2 | PO-NC |
| 124038 | FPM | 32 | 25 | 16 | 1 | MT05-2 | PO-NC | |
| 124045A | 51510784 | EPDM | 32 | 25 | 16 | 1 | MT05-2 | PO-NO |
| 124052 | FPM | 32 | 25 | 16 | 1 | MT05-2 | PO-NO | |
| 124059A | 51510791 | EPDM | 32 | 25 | 16 | 1 | MT05DA | PO-DA |
| 124066 | FPM | 32 | 25 | 16 | 1 | MT05DA | PO-DA | |
| 124032A | 51510776 | EPDM | 40 | 32 | 16 | 1 | MT15-4 | PO-NC |
| 124039 | 51510779 | FPM | 40 | 32 | 16 | 1 | MT15-4 | PO-NC |
| 124046A | 51510785 | EPDM | 40 | 32 | 16 | 1 | MT15-4 | PO-NO |
| 124053 | FPM | 40 | 32 | 16 | 1 | MT15-4 | PO-NO | |
| 124060A | 51510792 | EPDM | 40 | 32 | 16 | 1 | MT15DA | PO-DA |
| 124067 | FPM | 40 | 32 | 16 | 1 | MT15DA | PO-DA | |
| 124033A | 51510777 | EPDM | 50 | 40 | 16 | 1 | MT15-4 | PO-NC |
| 124040 | 51510780 | FPM | 50 | 40 | 16 | 1 | MT15-4 | PO-NC |
| 124047A | 51510786 | EPDM | 50 | 40 | 16 | 1 | MT15-4 | PO-NO |
| 124054 | FPM | 50 | 40 | 16 | 1 | MT15-4 | PO-NO | |
| 124061A | 51510793 | EPDM | 50 | 40 | 16 | 1 | MT15DA | PO-DA |
| 124068 | FPM | 50 | 40 | 16 | 1 | MT15DA | PO-DA | |
| 124034A | 51510778 | EPDM | 63 | 50 | 16 | 1 | MT17-4 | PO-NC |
| 124041 | FPM | 63 | 50 | 16 | 1 | MT17-4 | PO-NC | |
| 124048A | 51510787 | EPDM | 63 | 50 | 16 | 1 | MT17-4 | PO-NO |
| 124055 | FPM | 63 | 50 | 16 | 1 | MT17-4 | PO-NO | |
| 124062A | 51510794 | EPDM | 63 | 50 | 16 | 1 | MT15DA | PO-DA |
| 124069 | FPM | 63 | 50 | 16 | 1 | MT15DA | PO-DA | |
| 124257 | 51510852 | EPDM | 75 | 65 | 16 | 1 | MT30-4 | PO-NC |
| 124260 | FPM | 75 | 65 | 16 | 1 | MT30-4 | PO-NC | |
| 124268 | 51510855 | EPDM | 75 | 65 | 16 | 1 | MT30-4 | PO-NO |
| 124271 | FPM | 75 | 65 | 16 | 1 | MT30-4 | PO-NO | |
| 124274 | 51510858 | EPDM | 75 | 65 | 16 | 1 | MT20DA | PO-DA |
| 124277 | FPM | 75 | 65 | 16 | 1 | MT20DA | PO-DA | |
| 124258 | 51510853 | EPDM | 90 | 80 | 16 | 1 | MT35-4 | PO-NC |
| 124261 | FPM | 90 | 80 | 16 | 1 | MT35-4 | PO-NC | |
| 124269 | 51510856 | EPDM | 90 | 80 | 16 | 1 | MT35-4 | PO-NO |
| 124272 | FPM | 90 | 80 | 16 | 1 | MT35-4 | PO-NO | |
| 124275 | 51510859 | EPDM | 90 | 80 | 16 | 1 | MT20DA | PO-DA |
| 124278 | FPM | 90 | 80 | 16 | 1 | MT20DA | PO-DA | |
| 124259 | 51510854 | EPDM | 110 | 80 | 16 | 1 | MT35-4 | PO-NC |
| 124262 | FPM | 110 | 80 | 16 | 1 | MT35-4 | PO-NC | |
| 124270 | 51510857 | EPDM | 110 | 80 | 16 | 1 | MT35-4 | PO-NO |
| 124273 | FPM | 110 | 80 | 16 | 1 | MT35-4 | PO-NO | |
| 124276 | 51510860 | EPDM | 110 | 80 | 16 | 1 | MT20DA | PO-DA |
| 124279 | FPM | 110 | 80 | 16 | 1 | MT20DA | PO-DA |
Technische Zeichnung & Maße
| DN | d | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 45 | 39,5 | 33 | 55,5 | 5,5 | 34 | 70,5 | - |
| 15 | 20 | 45 | 39,5 | 33 | 55,5 | 5,5 | 34 | 70,5 | 97 |
| 20 | 25 | 53,5 | 51 | 40 | 62 | 5,5 | 36 | 77 | 105 |
| 25 | 32 | 54 | 51 | 43 | 70 | 6,5 | 38 | 79,5 | 125 |
| 32 | 40 | 62 | 63,5 | 51 | 84 | 6,5 | 40 | 98 | 140 |
| 40 | 50 | 78 | 72 | 56 | 101 | 6,5 | 45 | 105,5 | 150 |
| 50 | 63 | 87 | 84 | 64 | 115 | 6,5 | 50 | 114 | 165 |
Maße in mm · Buchstaben gemäß Zeichnung · Maße des Ventilkörpers ohne Antrieb
Downloads & Anleitungen
Zusätzliche Informationen
| Material | PVC-U |
|---|---|
| Druckstufe | PN16 |
| Einsatzbereich | Industrie & Prozess |
